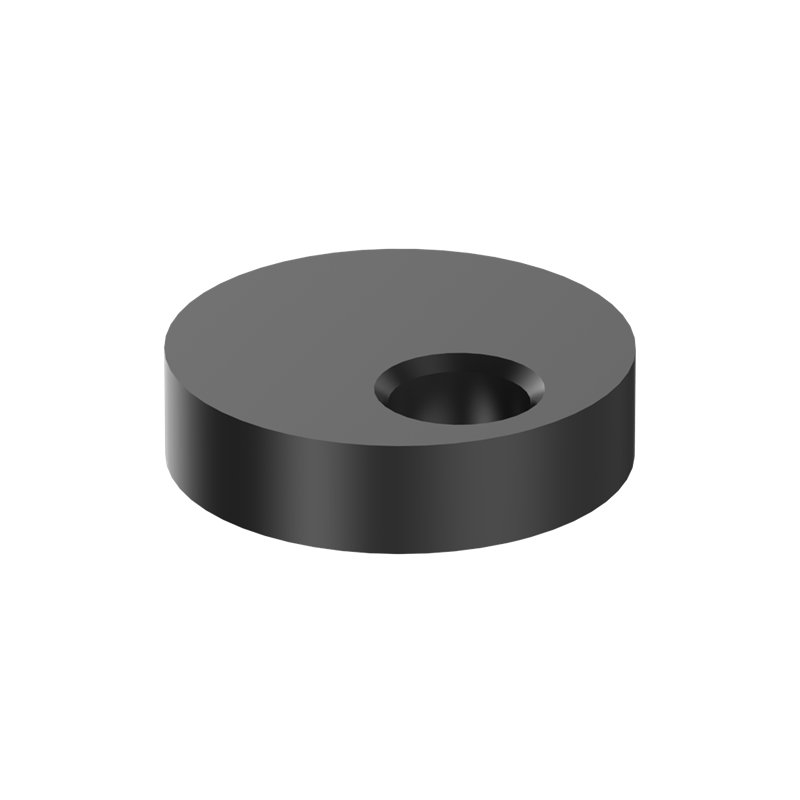

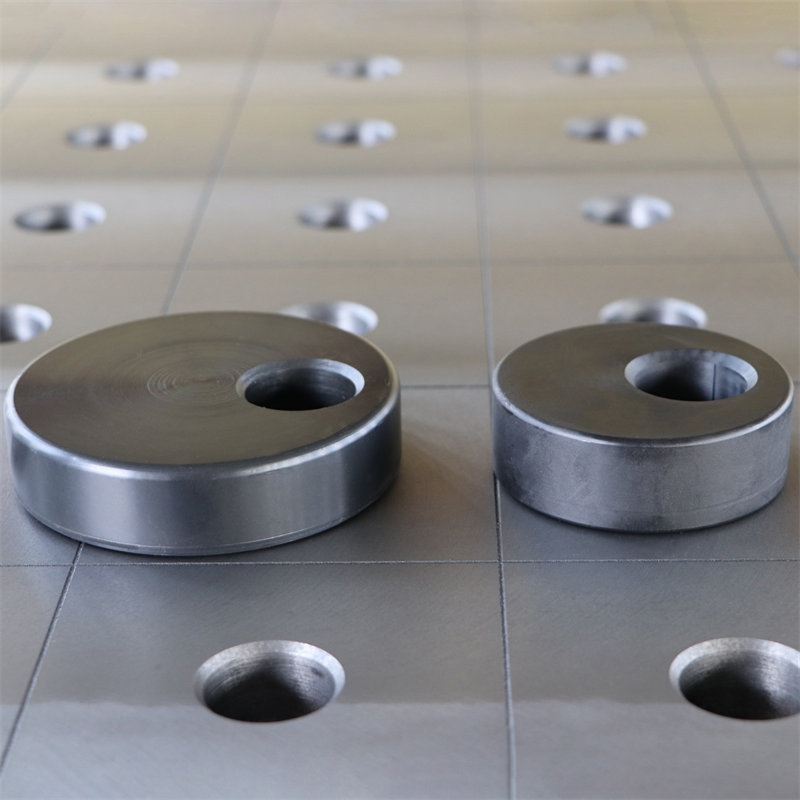

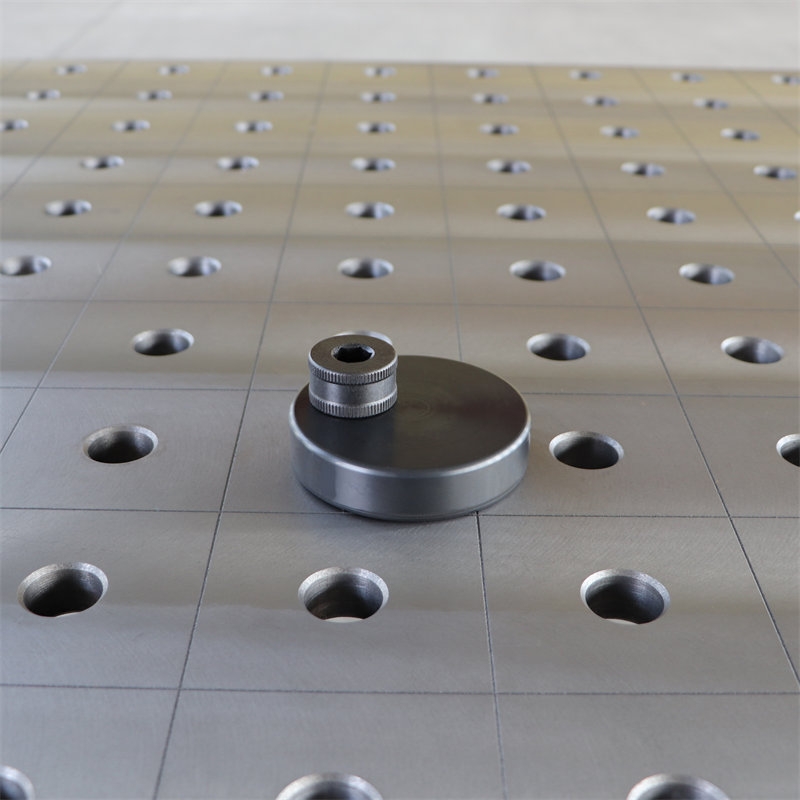

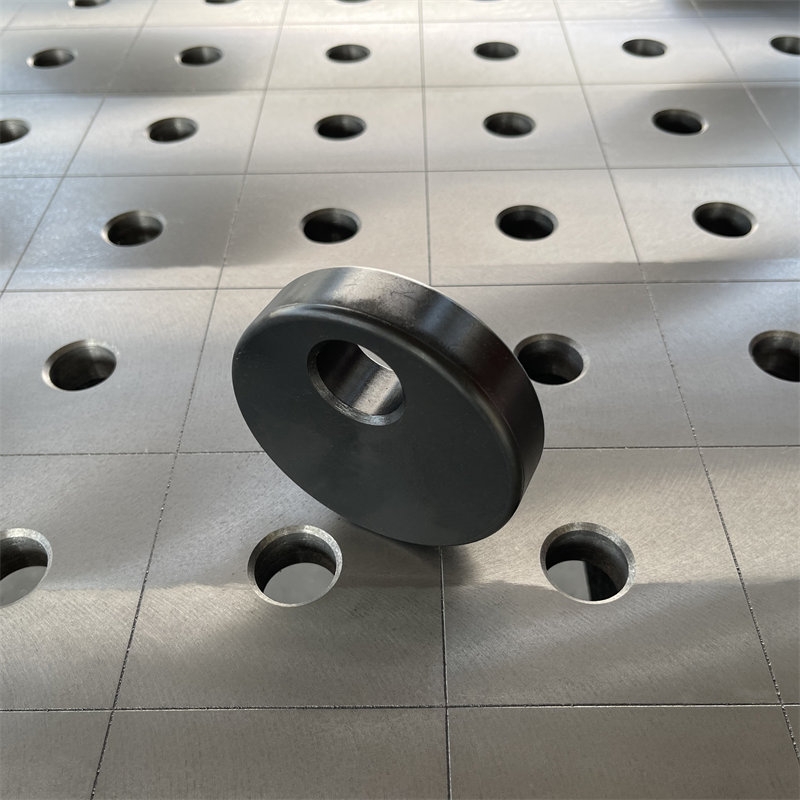

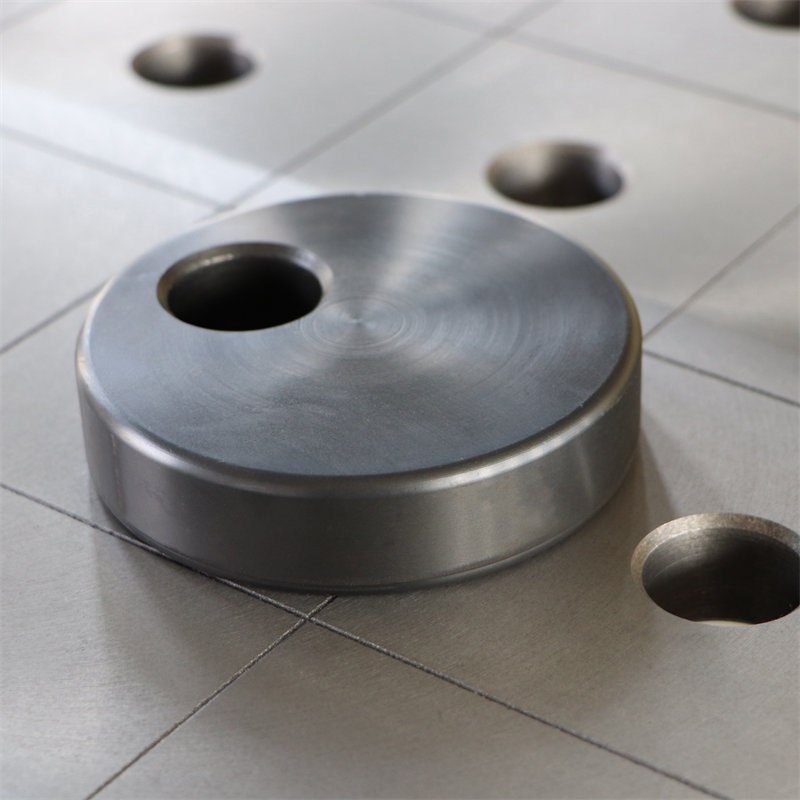

Eccentric Locating Disc
● For positioning special and odd shape workpiece.
● Moving and revolving eccentric plate to fix different position.
● Can be used as stop or support
● Continuous adjustment by turning
● Low space requirements
Description
Eccentric Toggle Locating Disc
- For positioning special and odd shape workpiece.
- Moving and revolving eccentric plate to fix different position.
- Can be used as stop or support
- Continuous adjustment by turning
- Low space requirements
D28 System:
| Model |
Size(mm) |
Weight(kg) |
| ELD7525 |
φ75x25mm |
0.45 |
| ELD10025 | φ100x25mm | 1.5 |
D16 System:
| Model |
Size(mm) |
Weight(kg) |
| ELD6012 |
φ60x12mm |
0.25 |
