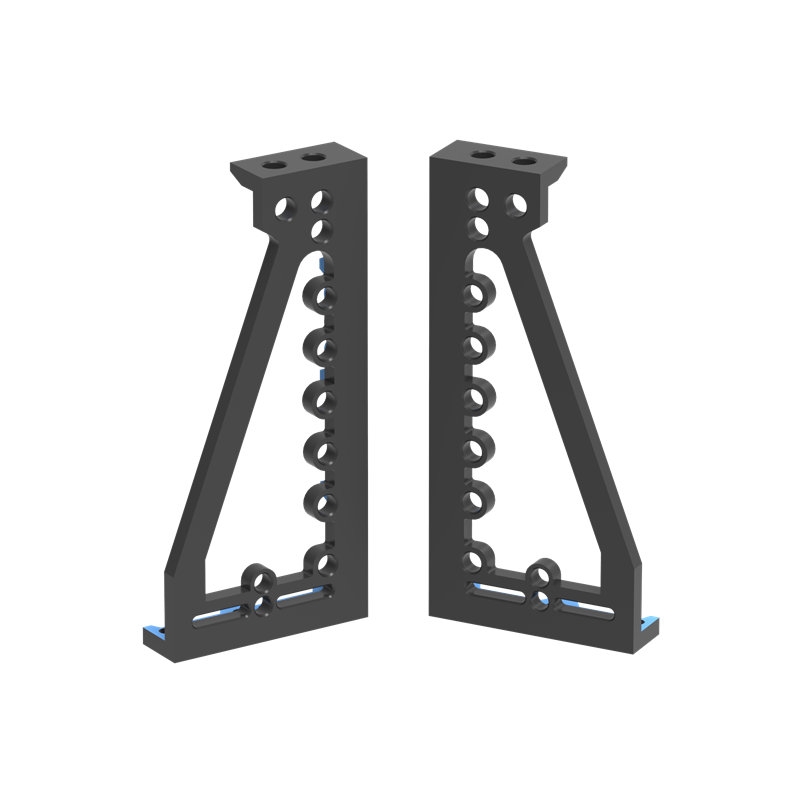

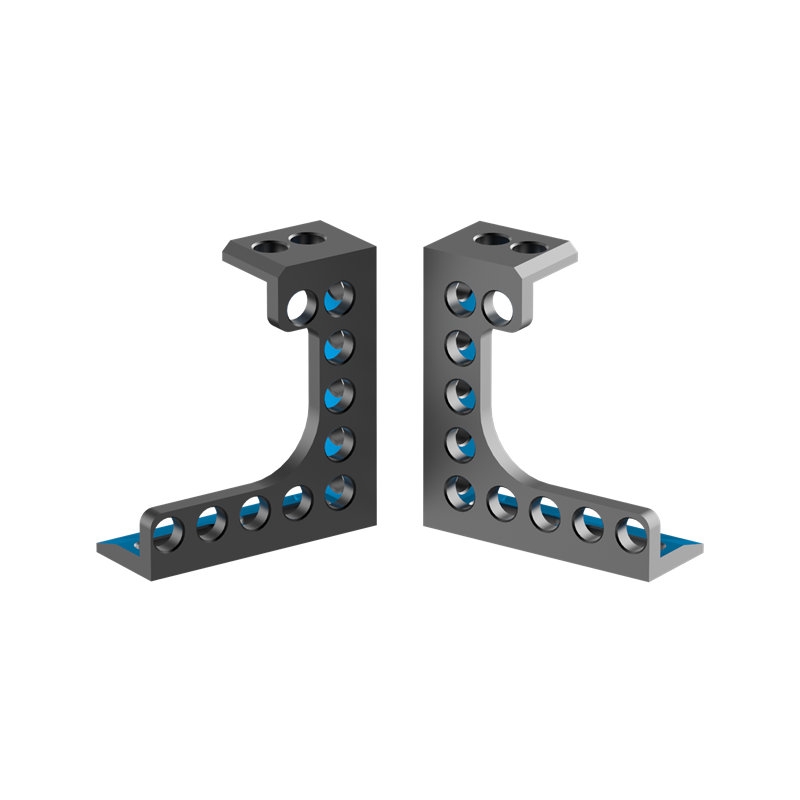

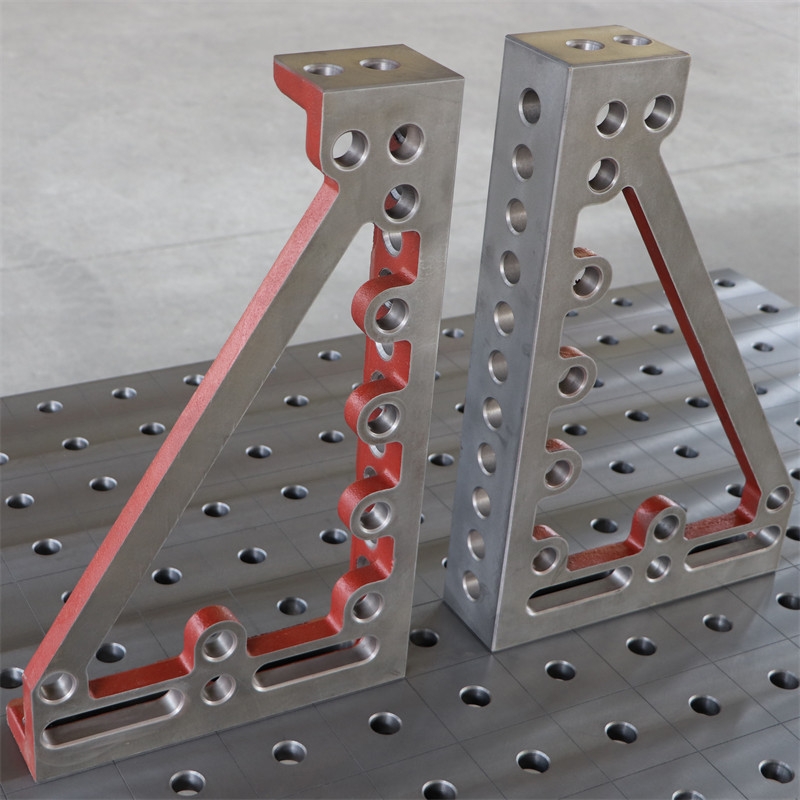

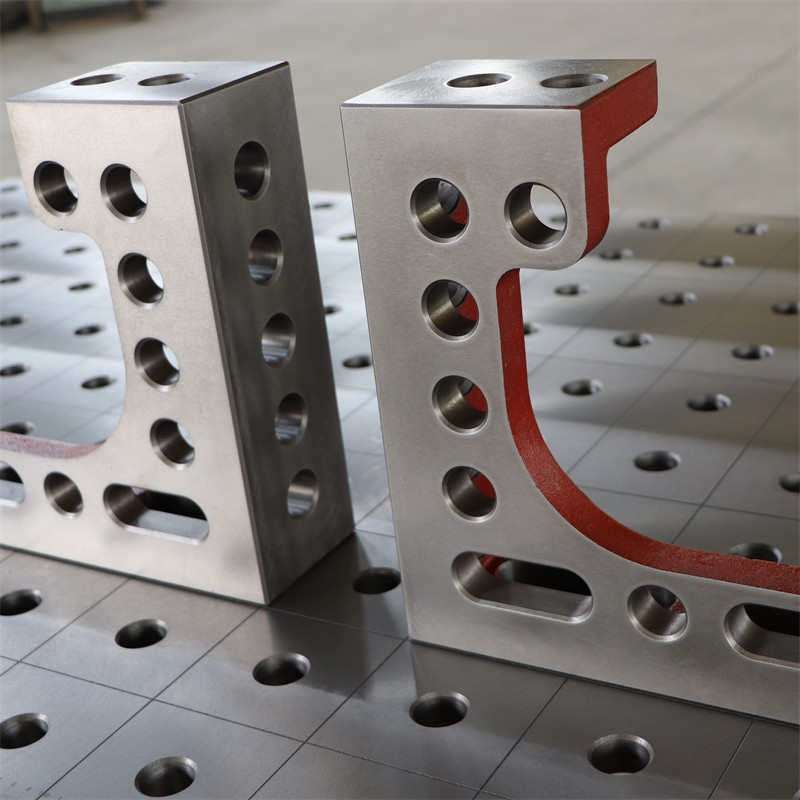

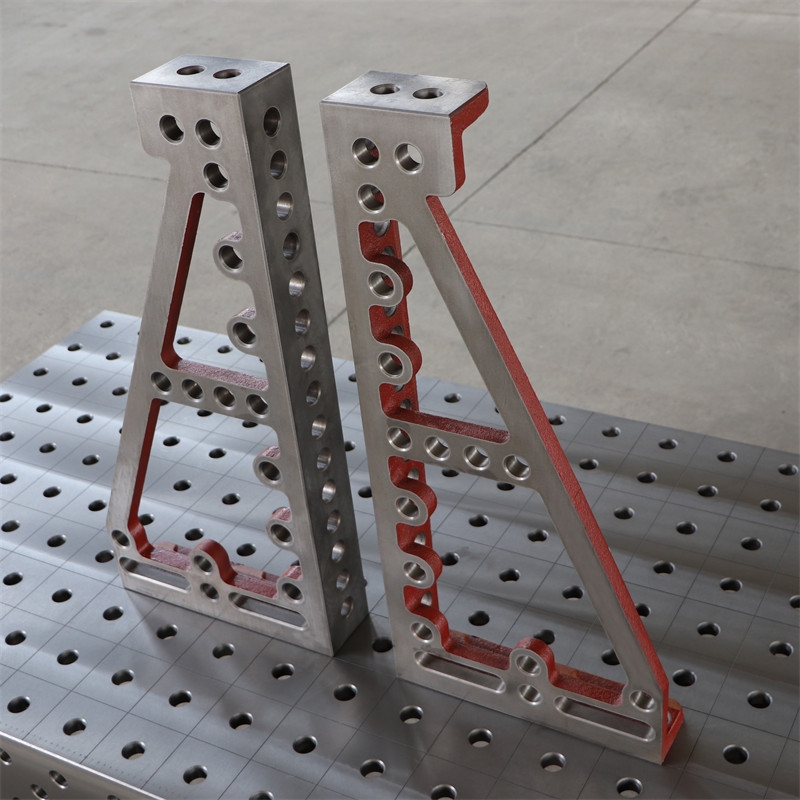

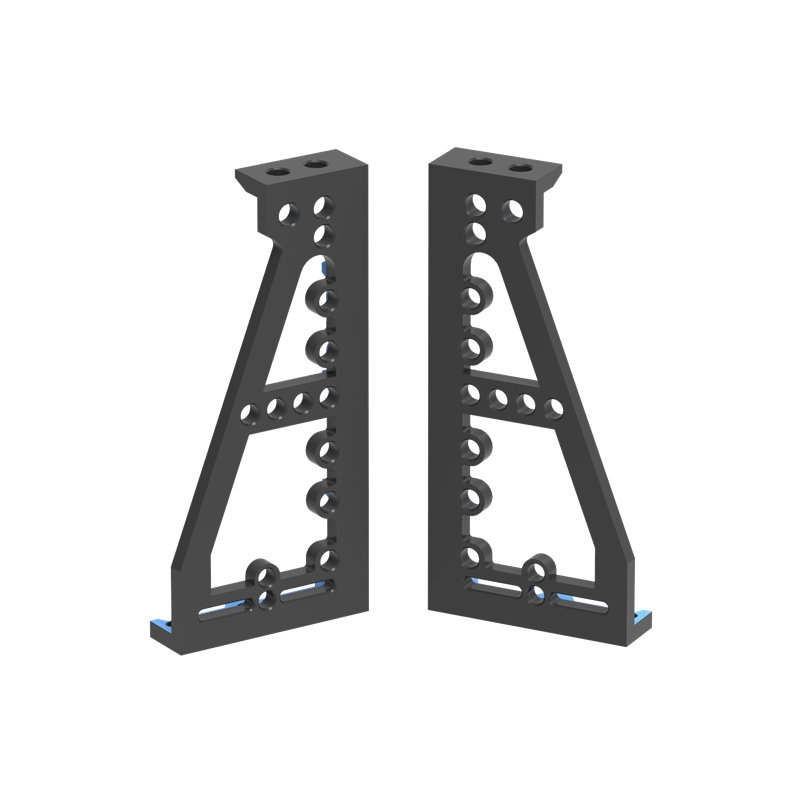

Clamping and Locating Angle
● One set has two parts-Left&Right, used for positioning for big weldments or extending table working area.
● Continuous adjustment and locking weldments.
● Three full clamping sides with system bores.
● With oblong and bore holes for continuous adjustment.
● Casting Iron: ultimate stability and ductility.
● Ordering in pairs is recommended.
Description
Clamping and Locating Angle
- One set has two parts-Left&Right, used for positioning for big weldments or extending table working area.
- Continuous adjustment and locking weldments.
- Three full clamping sides with system bores.
- With oblong and bore holes for continuous adjustment.
- Casting Iron: ultimate stability and ductility.
- Ordering in pairs is recommended.
D28 System:
| Model |
Size(mm) |
Weight (Kg) |
| LA283001 |
300x275x100 (L) |
14 |
| LA283002 |
300x275x100 (R) |
14 |
| LA286001 |
600x375x100 (L) |
25 |
| LA286002 |
600x375x100 (R) |
25 |
| LA288001 |
800x375x100 (L) |
32 |
| LA288002 |
800x375x100 (R) |
32 |
D16 System:
| Model |
Size(mm) |
Weight (Kg) |
| LA162001 |
200x150x50 (L) |
2.5 |
| LA162002 |
200x150x50 (R) |
2.5 |
| LA164001 |
400x200x50 (L) |
5 |
| LA164002 |
400x200x50 (R) |
5 |
| LA166001 |
600x200x50 (L) |
7 |
| LA166002 |
600x200x50 (R) |
7 |
