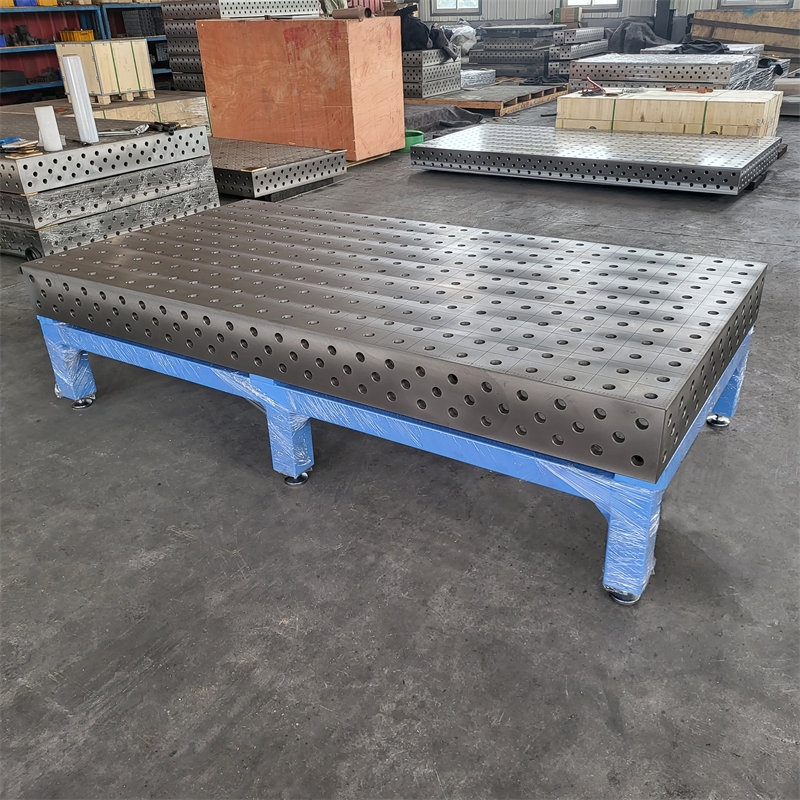

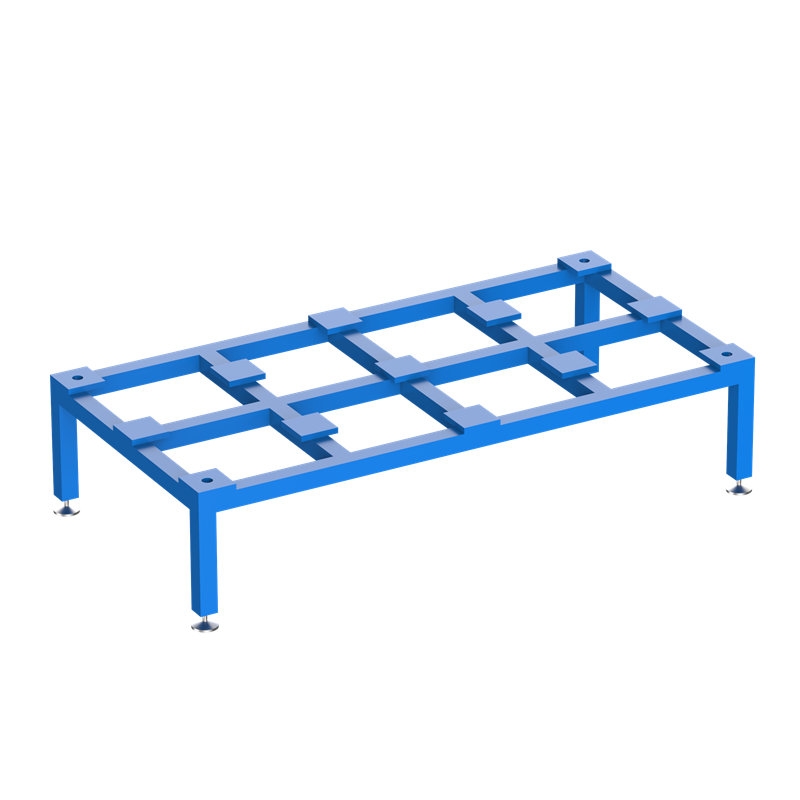

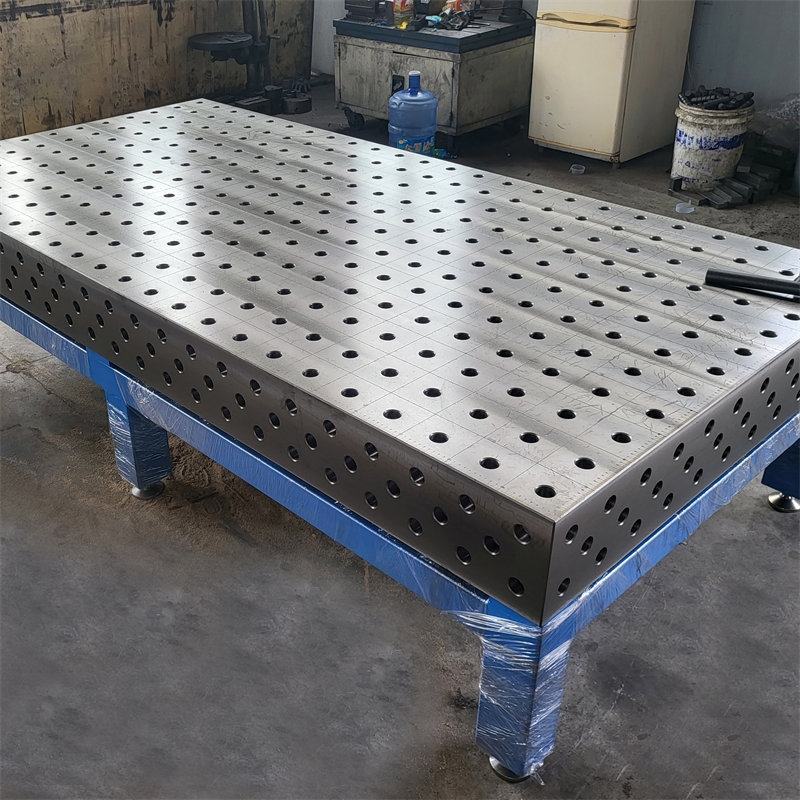

Holding Frame
Holding Frame is a strong supporting structure that provides a means to secure and hold workpieces in place during welding. The frame is designed to offer stability, accessibility, and flexibility, allowing welders to work on various projects with different shapes and sizes of workpieces.
Loading capacity upto 2-5T
Fine adjustment
Height: 400mm
Description
Holding Frame
-Frame Type welding table support base
-Very stable version for extremely high loads
-Loading bearing capacity: 5000kg
-Height: 400mm
| Model |
Sizes L*W*H(mm) |
Weight (Kg) |
| HF1010 |
1000 x 1000 x 400 |
110 |
| HF1212 |
1200 x 1200 x 400 |
144 |
| HF1510 |
1500 x 1000 x 400 |
200 |
| HF1515 |
1500 x 1500 x 400 |
280 |
| HF2010 |
2000 x 1000 x 400 |
240 |
| HF2412 |
2400 x 1200 x 400 |
360 |
| HF3015 |
3000 x 1500 x 400 |
480 |
| HF3020 |
3000 x 2000 x 400 |
550 |
| HF4020 |
4000 x 2000 x 400 |
630 |
