Welding Table Legs
LETIPTOP Welding Tables come with a wide range of mounting options to suit every workspace. Welding table legs, available in various lengths (special lengths upon request). Leveling feet with spindles at the bottom of the legs offer fine adjustment and leveling. Designed to create a comfortable, safe working height.
200-620mm height
Loading capacity upto 2000Kg
Standard and caster available
Fine adjustment
Description
Table Leg and Support:
LETIPTOP Welding Tables come with a wide range of mounting options to suit every workspace.
Leveling feet with spindles at the bottom of the legs offer fine adjustment.

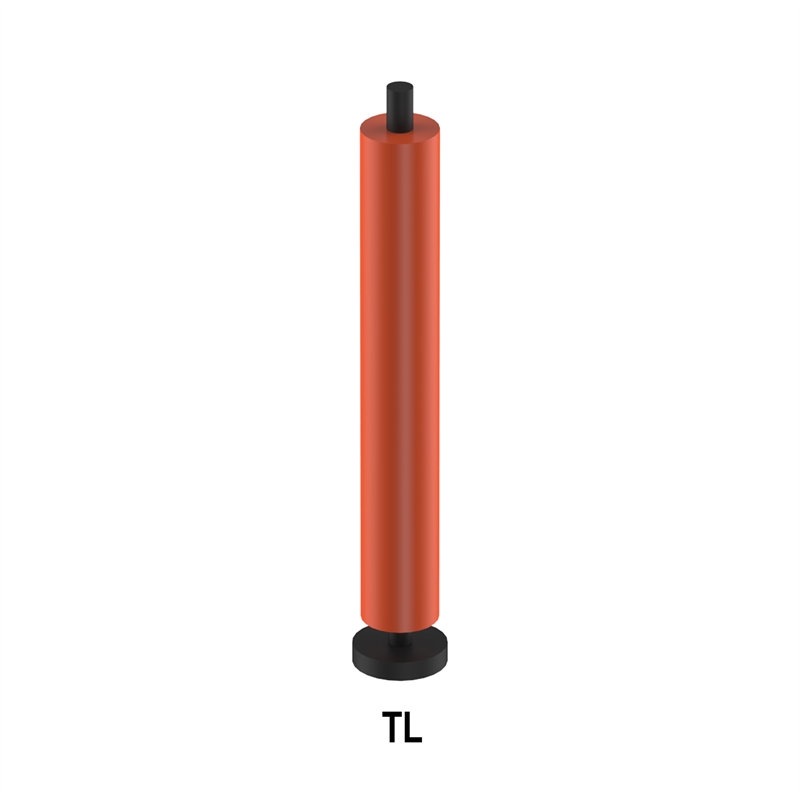

Standard Table Leg (TL)
-Height adjustable range 0-40mm
-Available in various length
-Loading bearing capacity: 2000kg

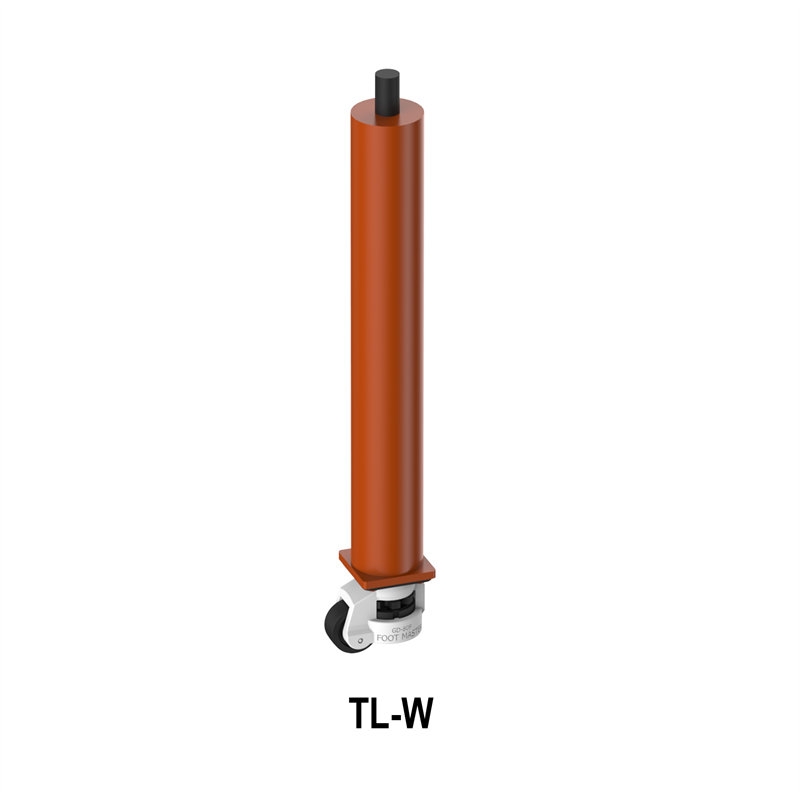

Heavy-duty Wheel (TLW)
-Height adjustable range 0-15mm
-Universal wheel leg with break
-Loading bearing capacity: 2000kg

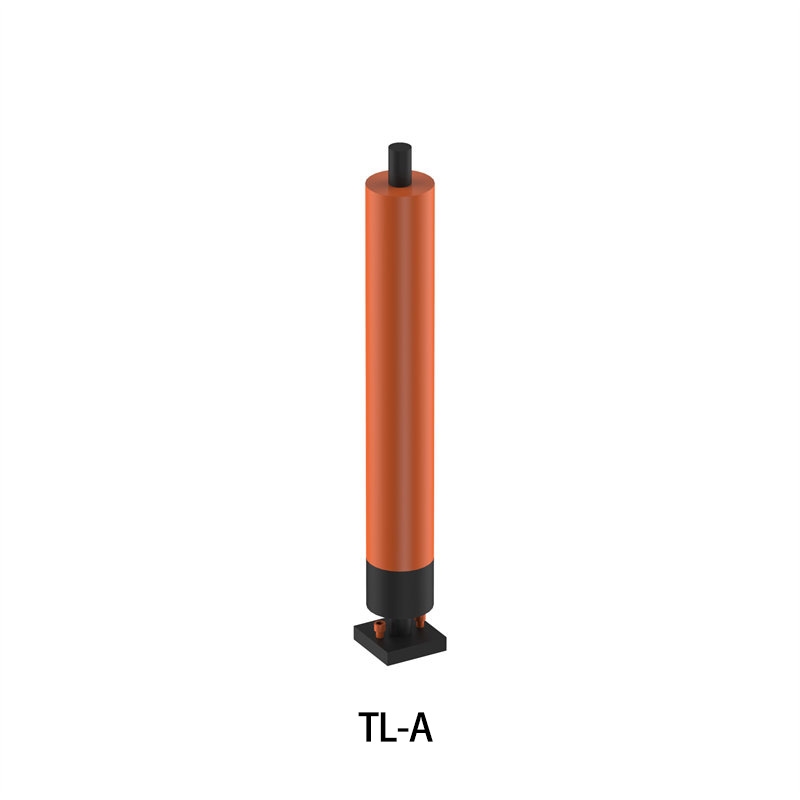

Anchoring Leg (FTL)
-Height adjustable range 0-40mm
-Floor anchoring
-Loading bearing capacity: 2000kg
| Model |
Size(mm) |
Weight (Kg) |
| Standard Table Leg |
||
| TL200 |
φ89×200 |
6 |
| TL350 |
φ89×350 |
7 |
| TL450 |
φ89×450 |
8.5 |
| TL620 |
φ89×620 |
10.5 |
| Heavy-duty Wheel |
||
| TL200W |
φ89×200 |
9 |
| TL350W |
φ89×350 |
10.5 |
| TL450W |
φ89×450 |
11 |
| TL620W |
φ89×620 |
13.5 |
| Anchoring Leg |
||
| TL200A |
φ89×200 |
7 |
| TL350A |
φ89×350 |
8.5 |
| TL450A |
φ89×450 |
9 |
| TL620A |
φ89×620 |
11.5 |
