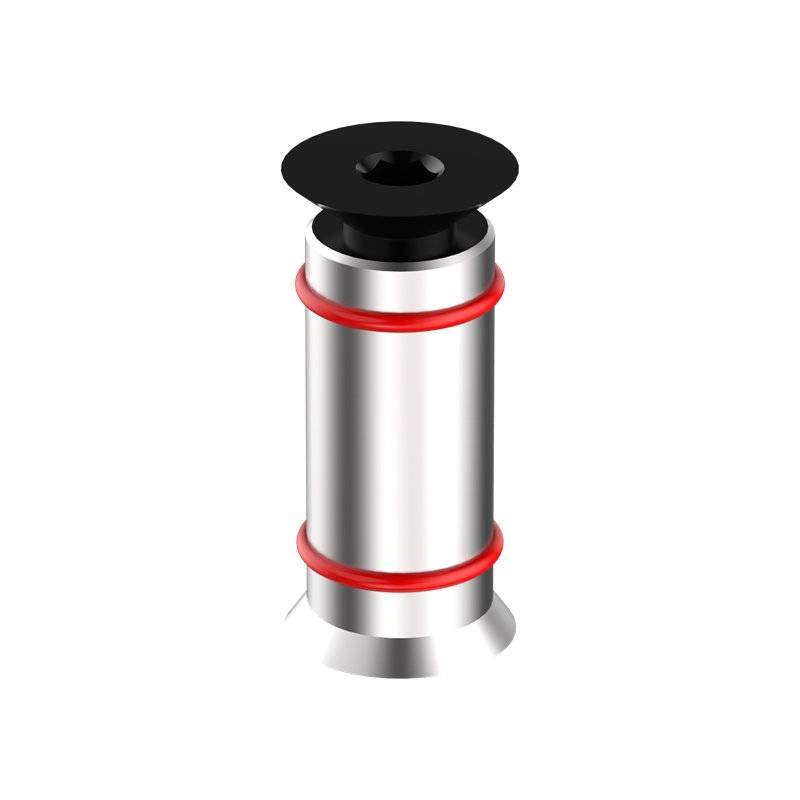

Countersunk Head Locking Bolt
● For connecting two or three parts together.
● 50mm type for 2 parts connection. 75mm type for 3 parts connection.
● Allen wrench for screw it.
● It is the main locking piece for Modular&Flexible welding fixtures.
● Self-locking, reduces material wear
● Highest locking force with large locking stroke
● O-ring prevents simultaneous rotation while tightening and cleans the system bore
Description
Countersunk Head Locking Bolt
- For connecting two or three parts together.
- 50mm type for 2 parts connection. 75mm type for 3 parts connection.
- Allen wrench for screw it.
- It is the main locking piece for Modular&Flexible welding fixtures.
- Self-locking, reduces material wear
- Highest locking force with large locking stroke
- O-ring prevents simultaneous rotation while tightening and cleans the system bore
D28 System:
| Model |
Size(mm) |
Weight(Kg) |
| CHLB2850 |
Φ28 x 50mm |
0.2 |
| CHLB2875 |
Φ28 x 75mm |
0.25 |
D16 System:
| Model |
Size(mm) |
Weight(Kg) |
| CHLB1624 |
Φ16 x 24mm |
0.04 |
| CHLB1636 |
Φ16 x 36mm |
0.08 |
