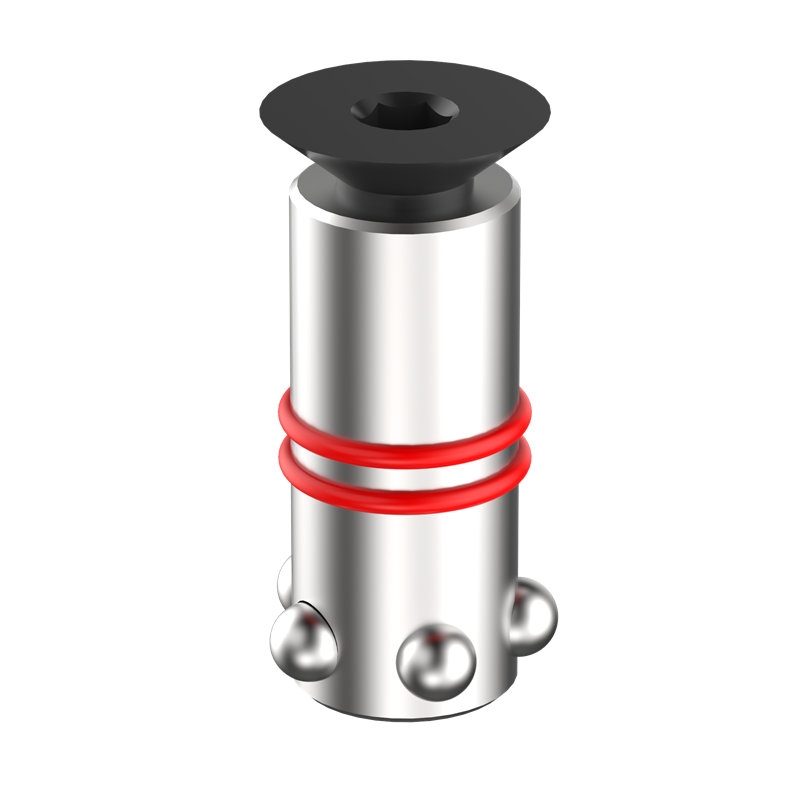

Countersunk Head Rapid Locking Bolt
● For connecting two or three parts together.
● 50mm type for 2 parts connection. 75mm type for 3 parts connection.
● Allen wrench for screw it.
● It is the main locking piece for Modular&Flexible welding fixtures.
● Self-locking, reduces material wear
● Highest locking force with large locking stroke
● O-ring prevents simultaneous rotation while tightening and cleans the system bore
● Countersunk bolt head
● Only for connecting bores
Description
Countersunk Head Fast Locking Bolt
- For connecting two or three parts together.
- 50mm type for 2 parts connection. 75mm type for 3 parts connection.
- Allen wrench for screw it.
- It is the main locking piece for Modular&Flexible welding fixtures.
- Self-locking, reduces material wear
- Highest locking force with large locking stroke
- O-ring prevents simultaneous rotation while tightening and cleans the system bore
- Countersunk bolt head
- Only for connecting bores
D28 System:
| Model |
Size(mm) |
Weight(Kg) |
| CHRLB2850 |
Φ28 x 50mm |
0.6 |
| CHRLB2875 |
Φ28 x 75mm |
0.65 |
D16 System:
| Model |
Size(mm) |
Weight(Kg) |
| CHRLB1624 |
Φ16 x 24mm |
0.1 |
| CHRLB1636 |
Φ16 x 36mm |
0.15 |
