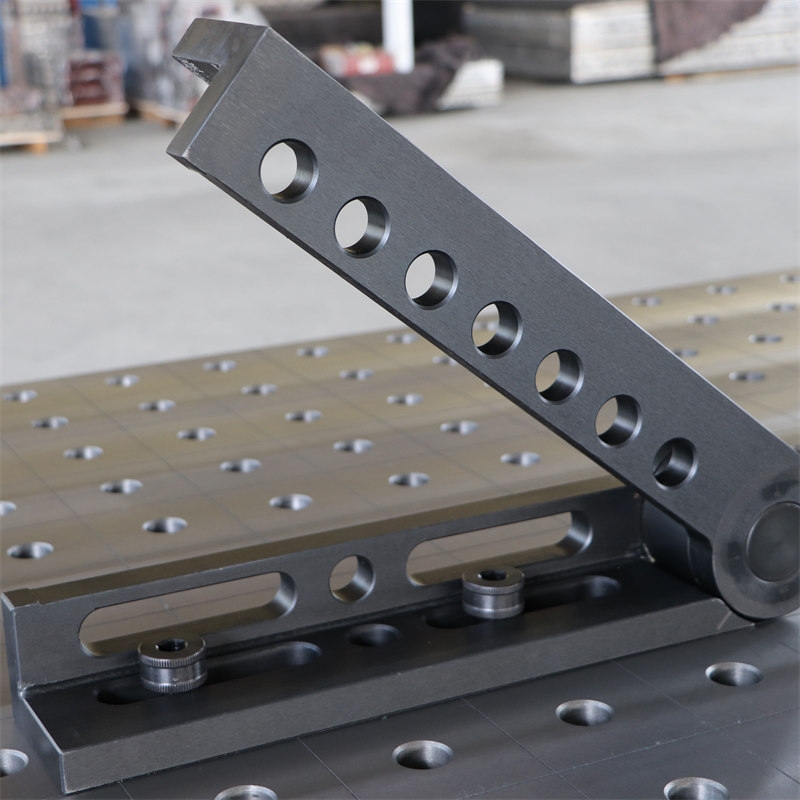

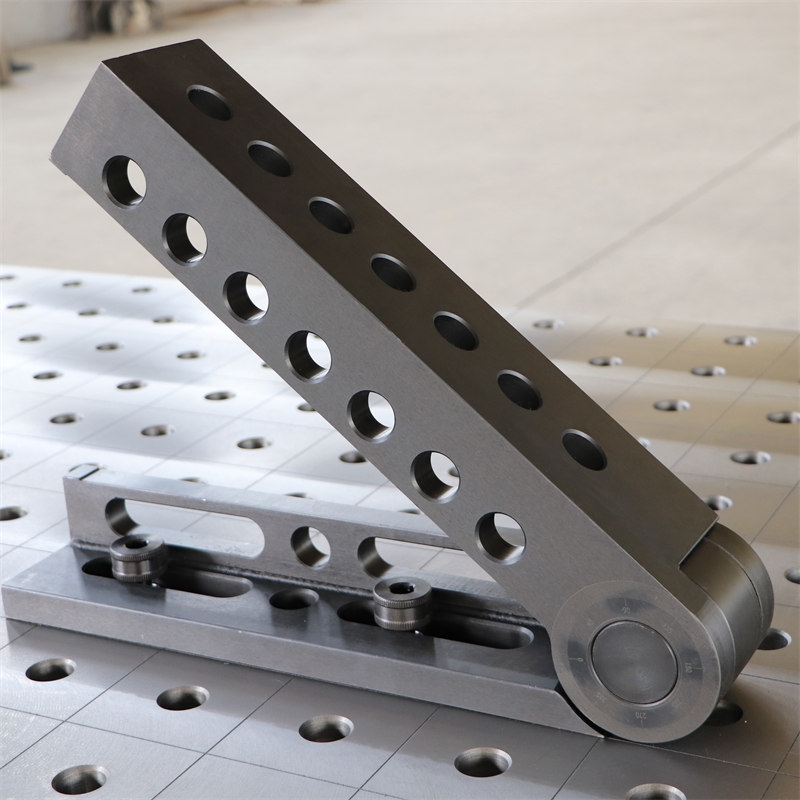

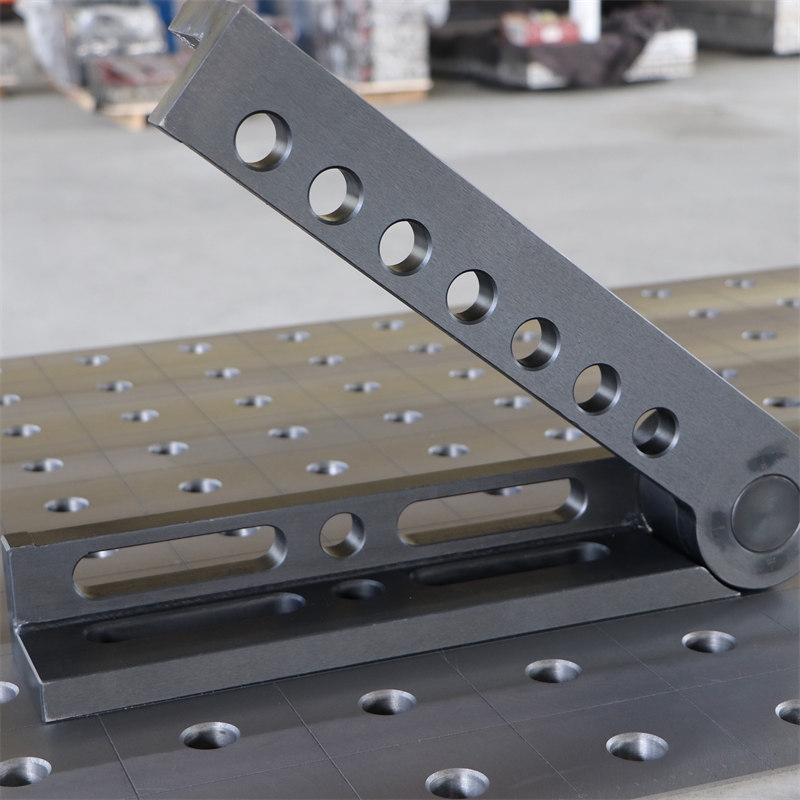

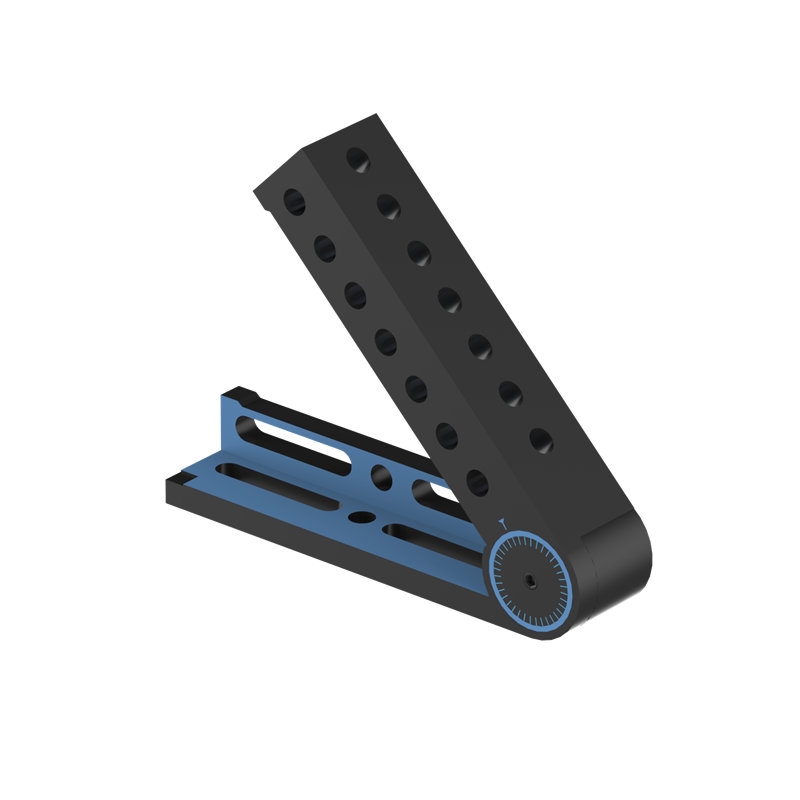

Universal Pivot and Tilt Angle

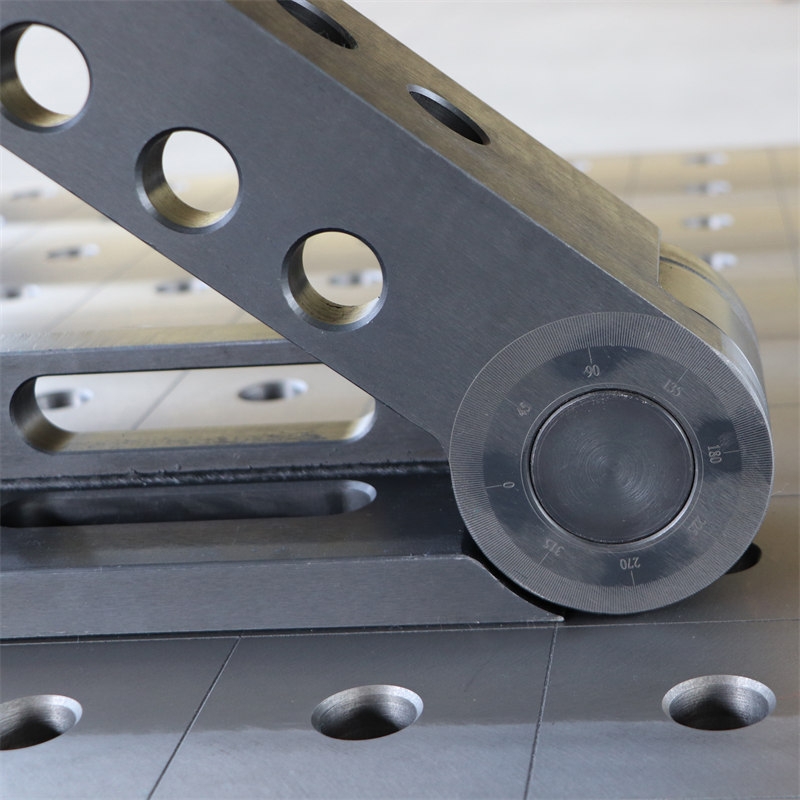

 Universal Pivot and Tilt Angle can be used to locate workpiece at an angle from 0°to 225°.
 It can be used as a basic positioning.
 It can be used as ordinary locating piece or as the base for the installation of other accessories.
 Horizontal and vertical use possible.
 Casting hardened.
Description
Universal Pivot and Tilt Angle

- Universal Pivot and Tilt Angle can be used to locate workpiece at an angle from 0°to 225°.
- It can be used as a basic positioning.
- It can be used as ordinary locating piece or as the base for the installation of other accessories.
- Horizontal and vertical use possible.
- Casting hardened.

D28 System:
Model Sizes(mm) Weight (Kg)
PTA28500 500x100x100 26

D16 System:

Model Sizes(mm) Weight (Kg)
PTA16250 250x50x50 3
