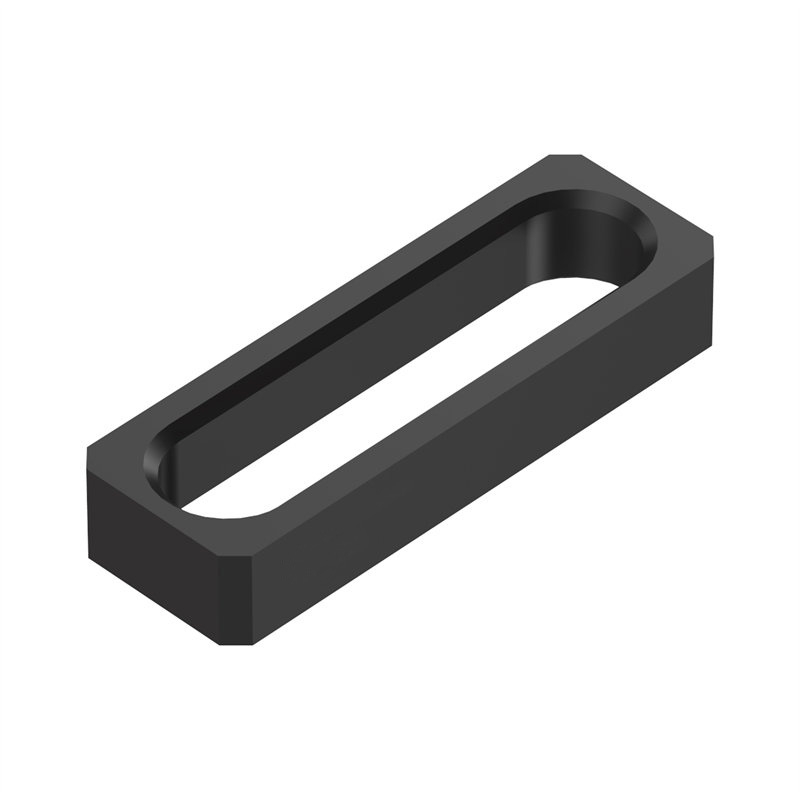

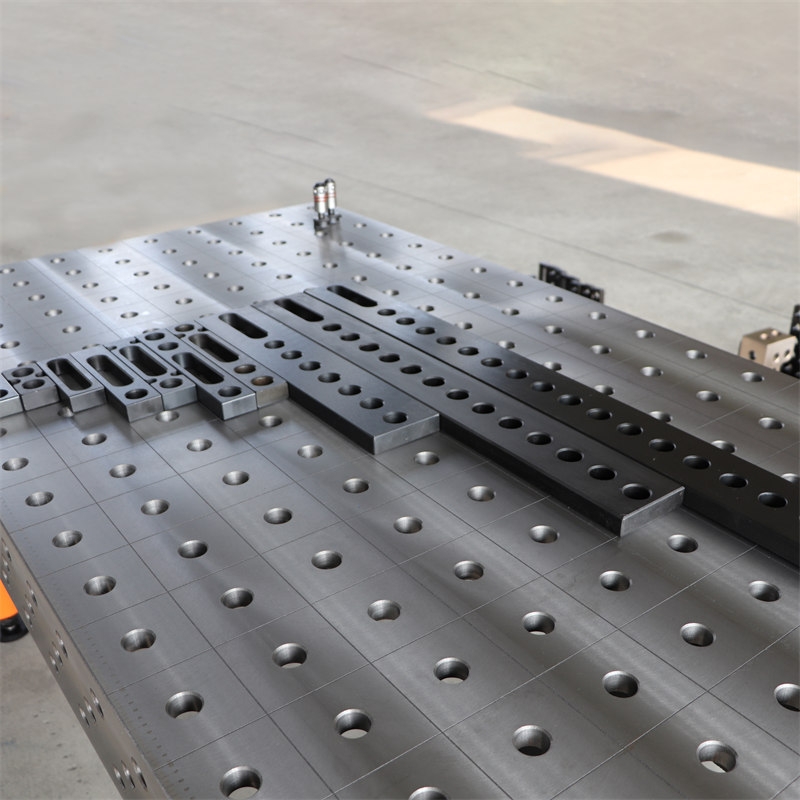

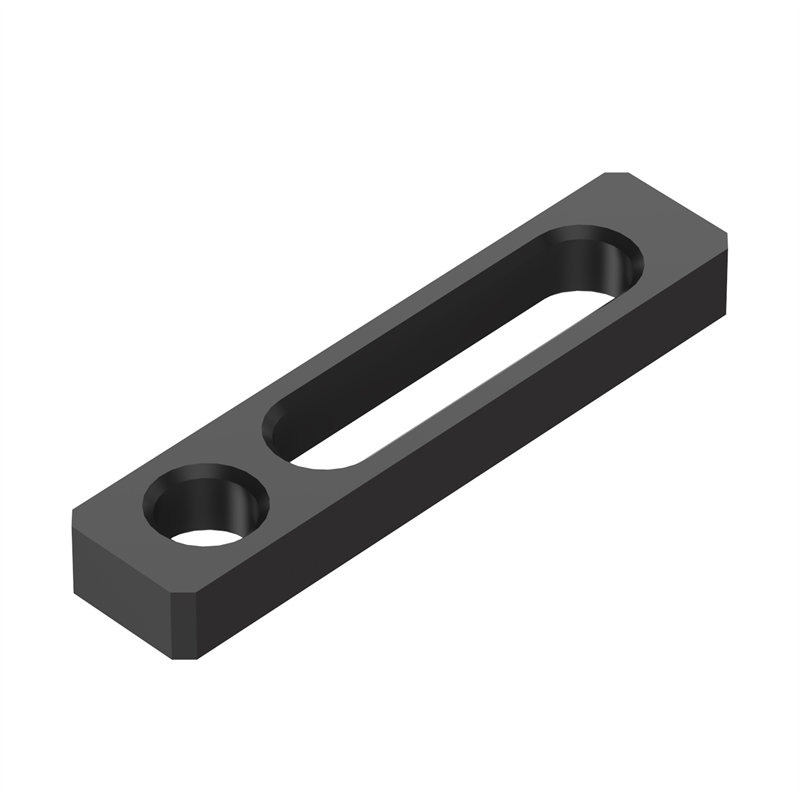

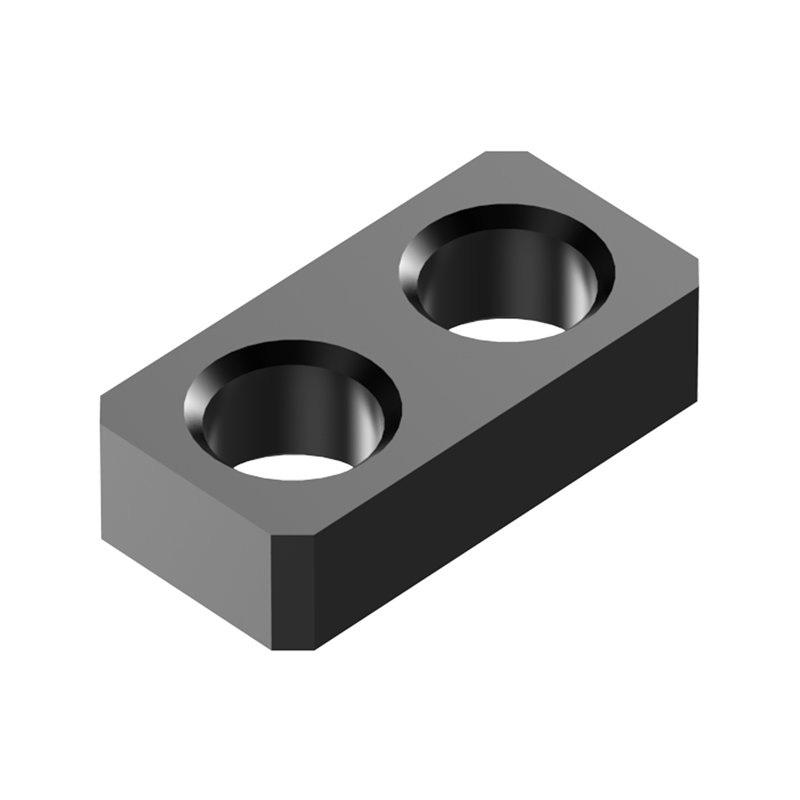

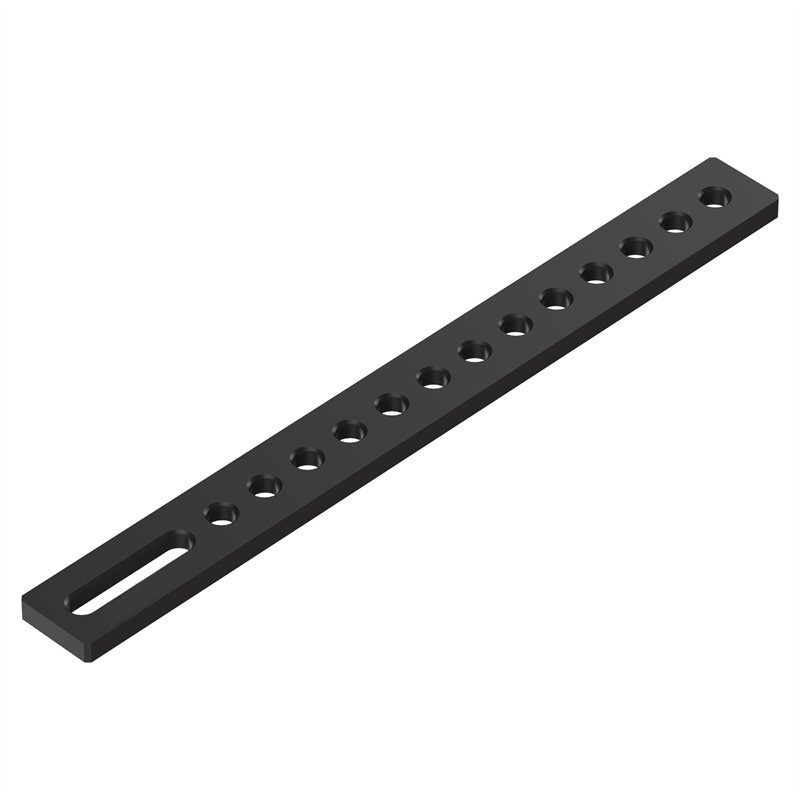

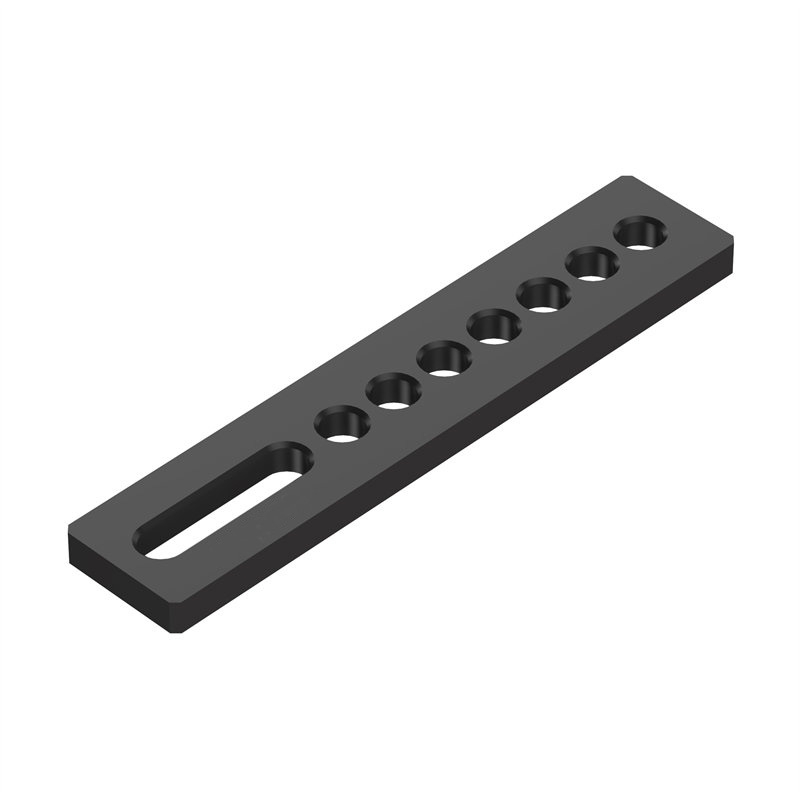

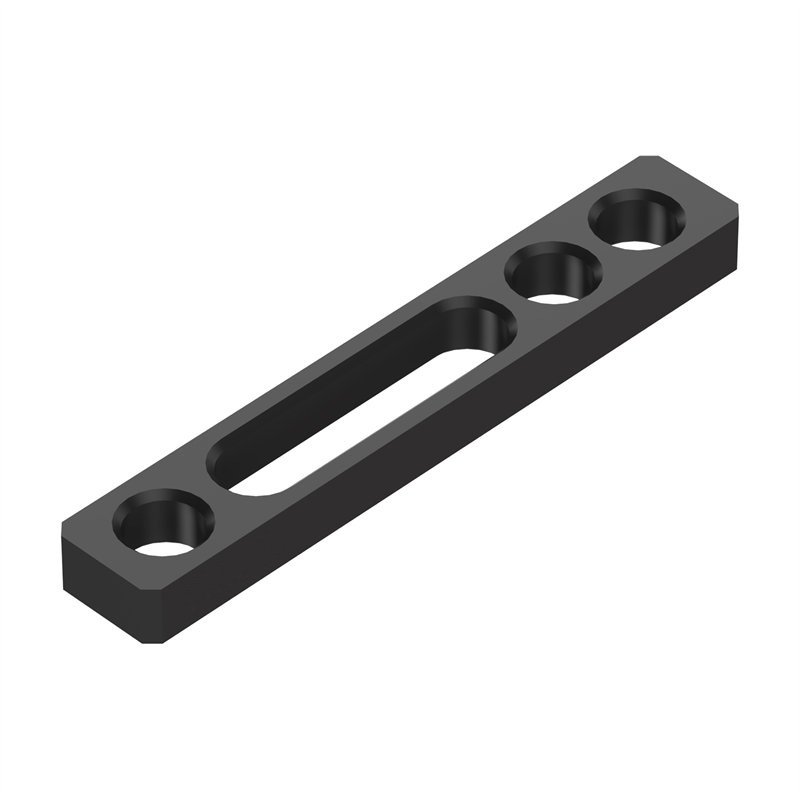

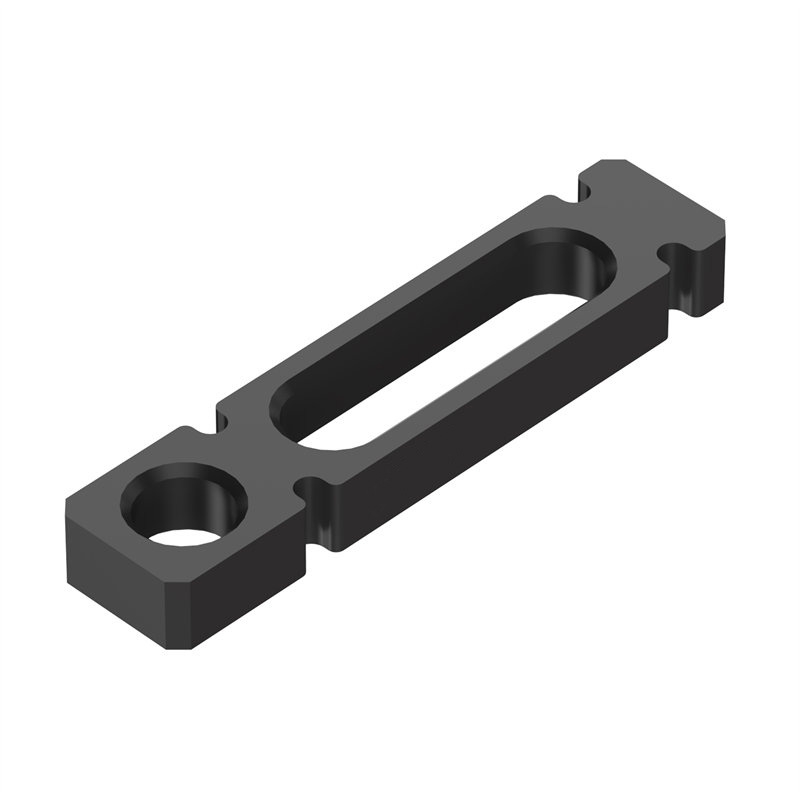

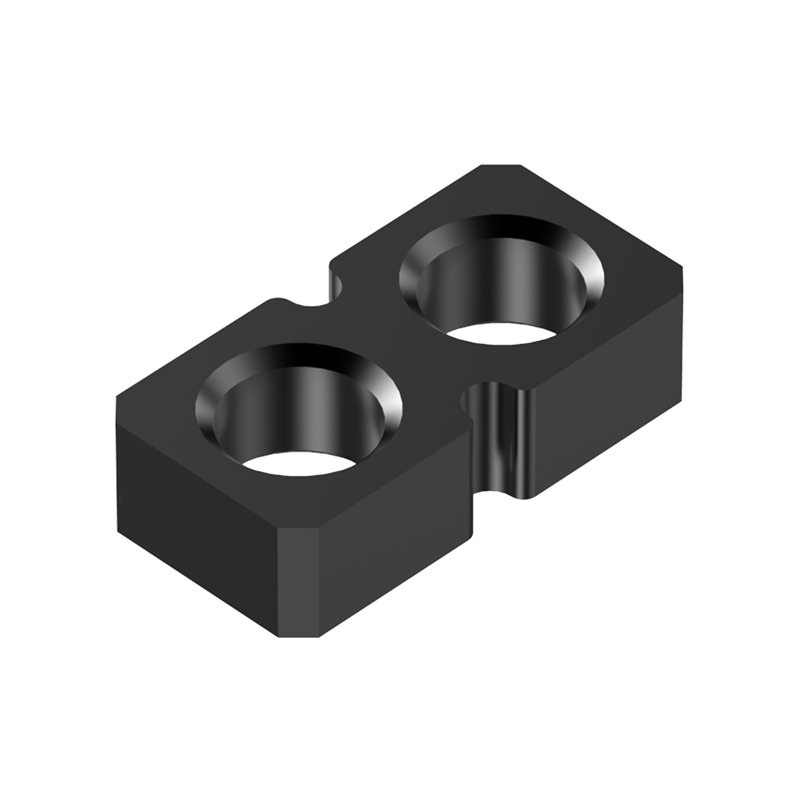

Universal-stop
- Universal-stop varies in height due to different workpiece.
- It can be flexible moved through the slot to adjust the distance to workpiece
- It can be used to fix the shape of workpiece in all aspects depending on the cooperation of more than one locating tools.
- It can also be used as a 180°standard rule.
D28 System:
Model |
Size(mm) |
Weight (Kg) |
US281001 |
100x50x25 |
0.8 |
US281002 |
100x50x25 |
0.8 |
US28150 |
150x50x25 |
0.8 |
US282251 |
225x50x25 |
1.3 |
US282252 |
225x50x25 |
1.3 |
US283001 |
300x50x25 |
2 |
US283002 |
300x50x25 |
2 |
US28500 |
500x100x25 |
5.8 |
US28800 |
800x100x25 |
9 |
US2810002 |
1000x100x25 |
12 |
D16 System:
Model |
Size(mm) |
Weight (Kg) |
US1655 |
55x30x12 |
0.1 |
US1690 |
90x30x12 |
0.12 |
US16110 |
110x30x12 |
0.15 |
US16140 |
140x30x12 |
0.2 |
US16190 |
190x30x12 |
0.25 |
US16250 |
250x50x12 |
1 |
US16400 |
400x50x12 |
1.6 |
