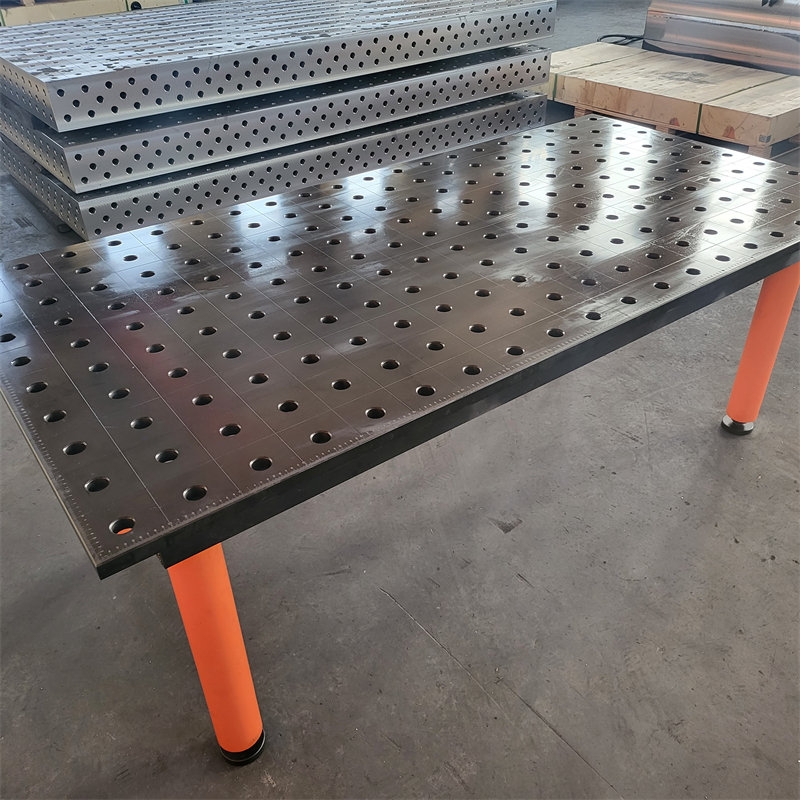

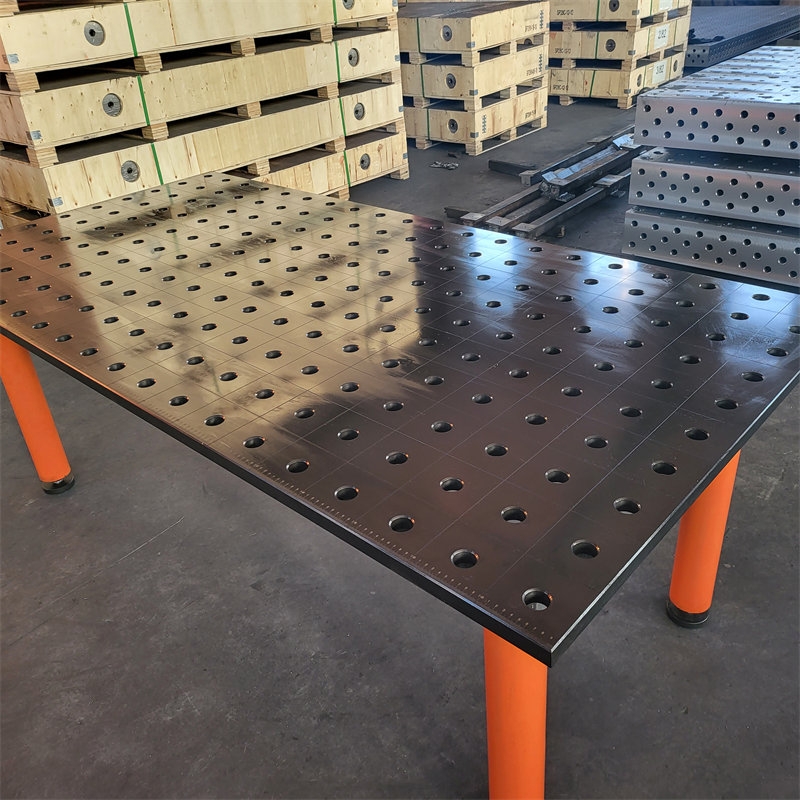

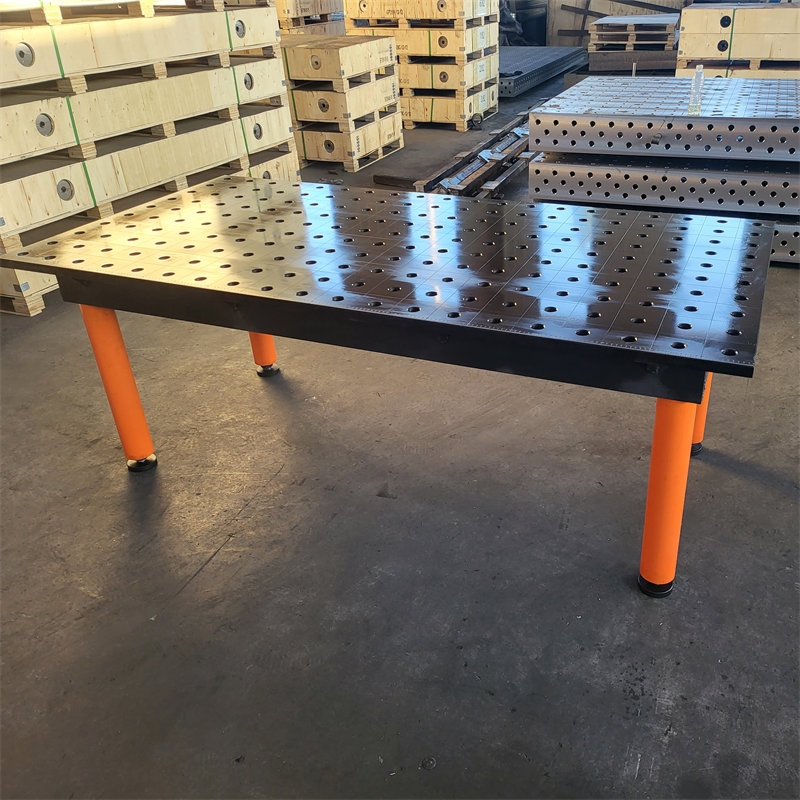

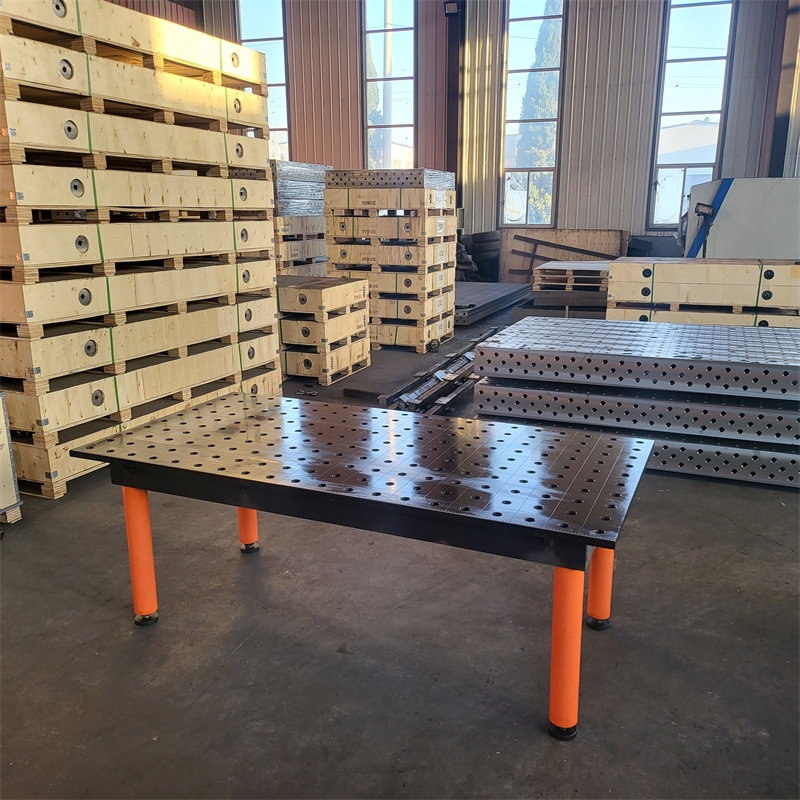

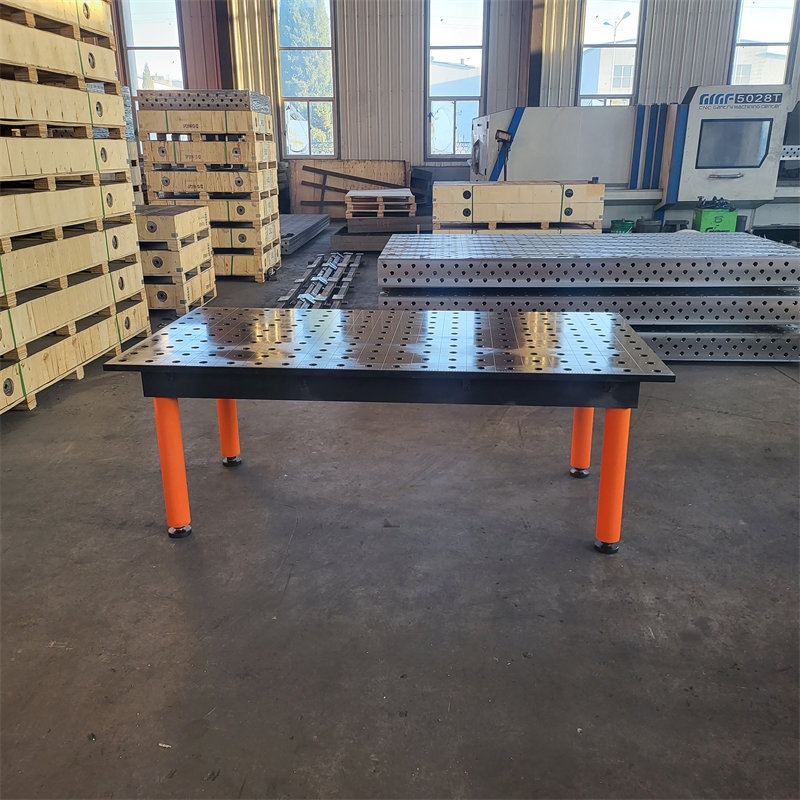

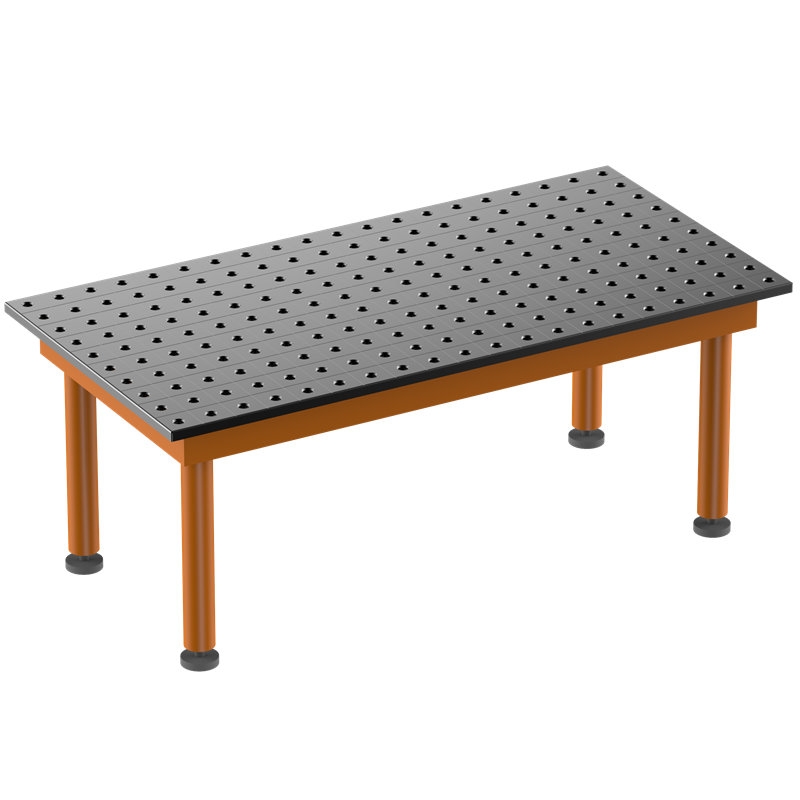

2D Welding Table
2D Welding Table is a typically flat and stationary welding table which used for the purpose of welding various metal components together in workshops, factories and other industrial environments where compact and easily transportable welding tables are required. It provides a stable and level work surface for the welding process, ensuring accuracy and precision in joining metal pieces and is an essential tool for professional welders.
2D welding table
Steel and cast iron type
28mm hole diameter
100mm hole spacing
Description
2D Welding Table:
2D Welding Table just has one working surfaces. It is the ideal work companion for every day –whether welding or assembling. With the fixtures and clamping, short through put time of your components and easy handling, your work becomes flexibility and high efficiency.
MATERIAL
-Steel Welding Table: Q355.
-Cast Iron Welding Table: HT300
HARDNESS
-Steel Welding Table: HV110-130
-Casting Welding Table: HB170-210
-Plasma Nitrating Steel Welding Table: HV550
TABLE THICKNESS
-The table top with a thickness of 24-27mm guarantees the durability of the table and resistance to mechanical damage.
HOLE DIAMETER
-D28 system: 28mm
-Drilled and milled hole.
GRID SPACING
- D28 system: 100±0.05mm
PRECISION
-Table horizontal precision: 0.1/1000mm.
-Drilling center accuracy: +/- 0.01mm.
LOADING CAPACITY
-2 ton weight loading capacity.
WORKING SURFACE
-One top working surface.
MILLIMETER SCALE
-Etched scale Marks allow the precise assembly of the element to be processed.
TABLE LEGS
- 4-6 support legs according to the size of the welding table.
- Optional steel frame and hydraulic lift box for choice.
SURFACE TREATMENT
- Optional Tempering Treatment
-Optional plasma nitriding coating.
WELDING SPATTER RESISTANT
-Keep spatter from sticking better and Easy to remove welding slag.
D28 System:
| Sizes L*W*H(mm) |
Model |
Weight (Kg) |
| 1000 x 1000 x 200 |
CWD281010C |
265 |
| 1200 x 1200 x 200 |
CWD281212C |
400 |
| 1500 x 1000 x 200 |
CWD281510C |
443 |
| 1500 x 1500 x 200 |
CWD281515C |
580 |
| 2000 x 1000 x 200 |
CWD282010C |
650 |
| 2400 x 1200 x 200 |
CWD282412C |
850 |
| 3000 x 1500 x 200 |
CWD283015C |
1200 |
Steel Welding Table
| Sizes L*W*H(mm) |
Model |
Weight (Kg) |
| 1000 x 1000 x 200 |
SWD281010M |
265 |
| 1200 x 1200 x 200 |
SWD281212M |
400 |
| 1500 x 1000 x 200 |
SWD281510M |
443 |
| 1500 x 1500 x 200 |
SWD281515M |
580 |
| 2000 x 1000 x 200 |
SWD282010M |
650 |
| 2400 x 1200 x 200 |
SWD282412M |
850 |
| 3000 x 1500 x 200 |
SWD283015M |
1200 |
Plasma Nitriding Steel Welding Table
| Sizes L*W*H(mm) |
Model |
Weight (Kg) |
| 1000 x 1000 x 200 |
SWD281010PN |
265 |
| 1200 x 1200 x 200 |
SWD281212PN |
400 |
| 1500 x 1000 x 200 |
SWD281510PN |
443 |
| 1500 x 1500 x 200 |
SWD281515PN |
580 |
| 2000 x 1000 x 200 |
SWD282010PN |
650 |
| 2400 x 1200 x 200 |
SWD282412PN |
850 |
| 3000 x 1500 x 200 |
SWD283015PN |
1200 |
