3D Welding Table

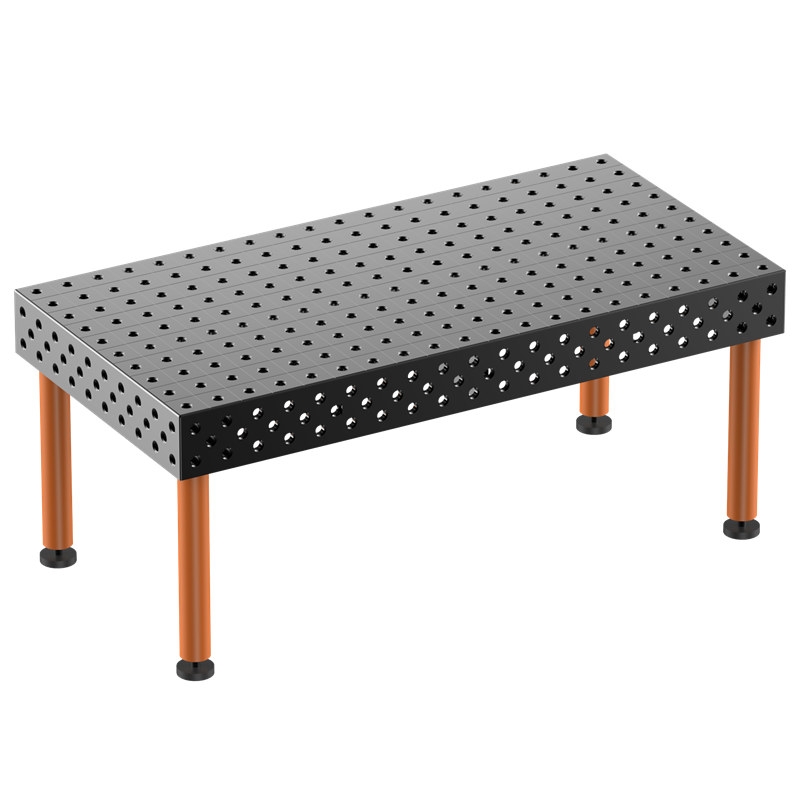

LETIPTOP 3D Welding Table with Fixtures can set up your welding parts quickly and precisely. It meets all requirements for variety applications.

2D and 3D welding table
Steel and cast iron type
16mm and 28mm hole diameter
50mm and 100mm hole spacing
Plasma nitriding treatment
Description
3D Welding Table

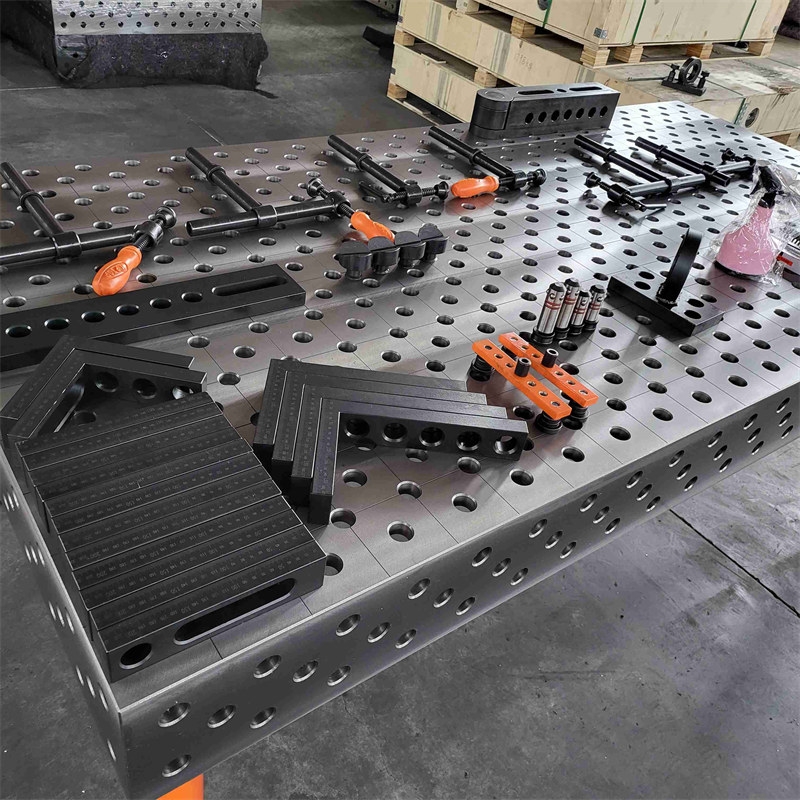

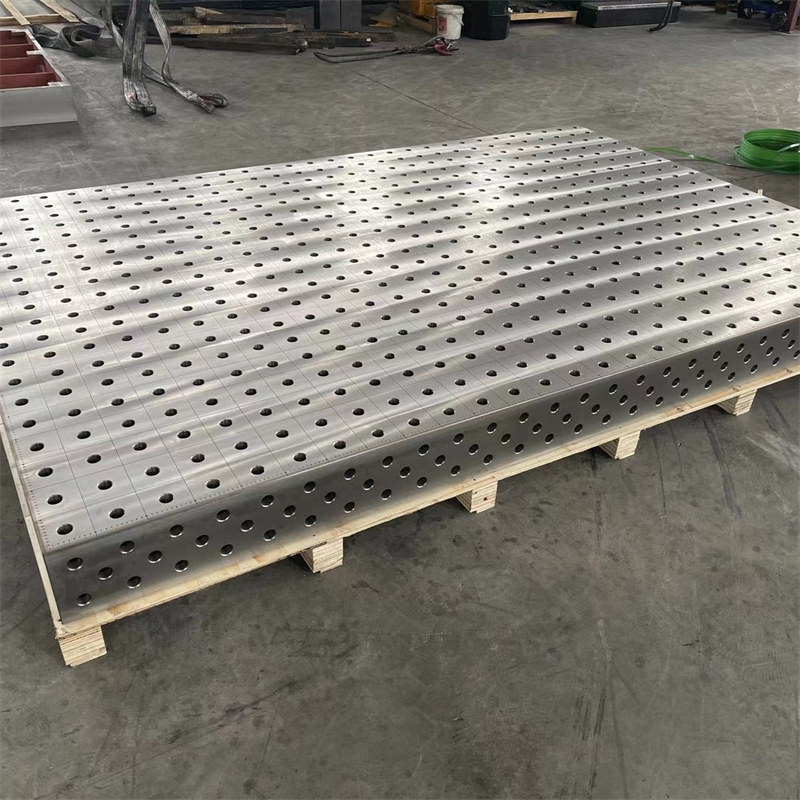

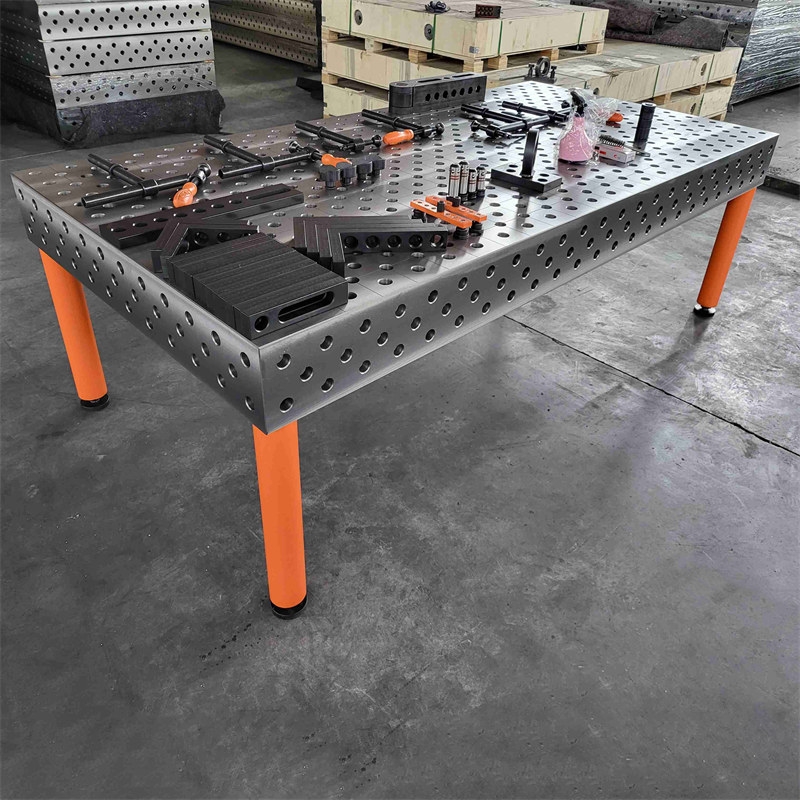

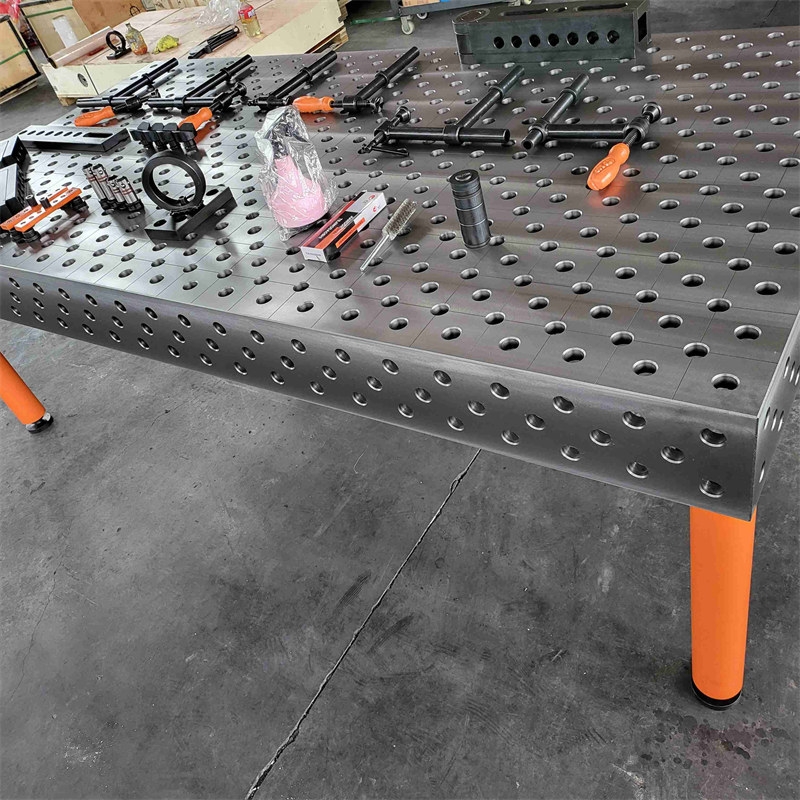

3D Modular Fixture Welding Table has five working surfaces for extending. With the fixtures and clamping, it will greatly save the design and production time and funds. You can quickly assemble different fixtures and connect all the workpiece together. This modular welding table can be used in machine, housing, racks, frames, crossbars, brackets, railings, stairs, doors, control cabinets, metal cladding paneling etc. It can work with welding robots or special welding set.

MATERIAL
-Steel Welding Table: Q355.

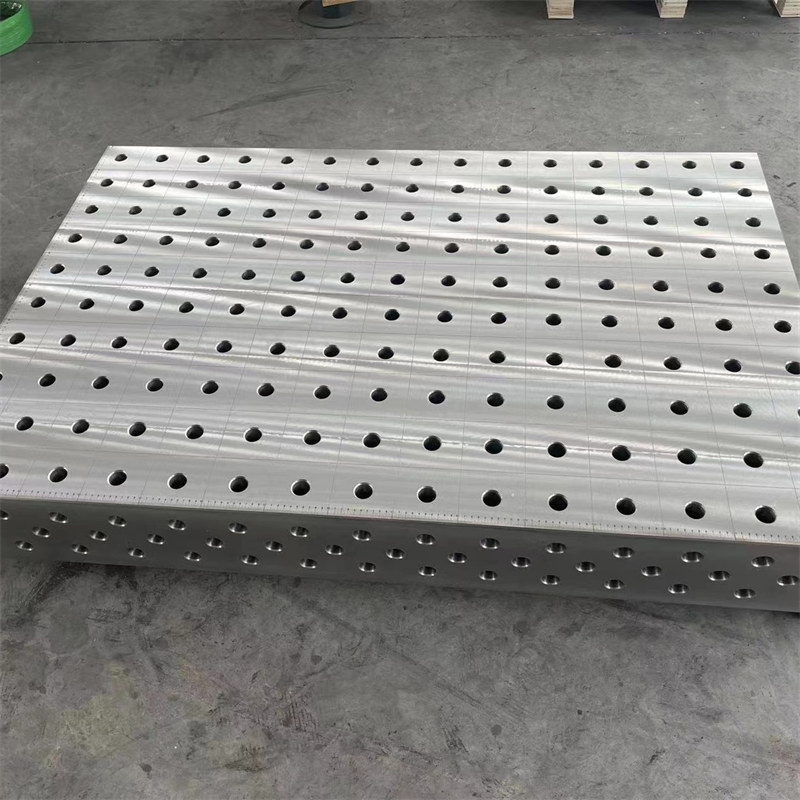

-Cast Iron Welding Table: HT300

HARDNESS
-Steel Welding Table: HV110-130
-Casting Welding Table: HB170-210
-Plasma Nitrating Steel Welding Table: HV550

TABLE THICKNESS
-D28 system: 24-27mm
-D16 system: 14-17mm

HOLE DIAMETER

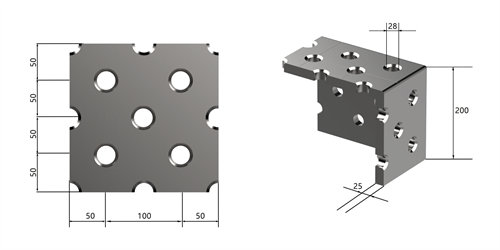

-D28 system: 28mm

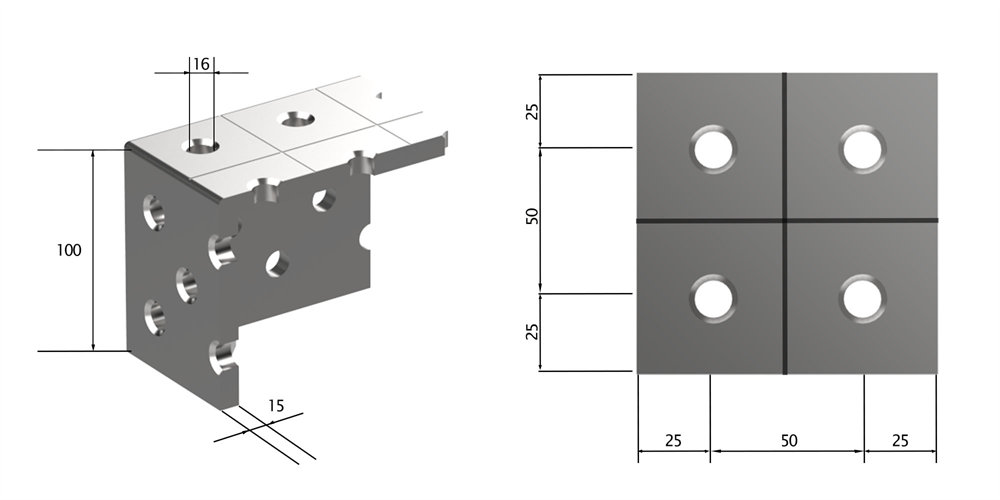

-D16 system: 16mm
-Drilled and milled hole.

GRID SPACING
- D28 system: 100±0.05mm
- D16 system: 50±0.05mm
-Diagonal has an extra hole in the center of each 4 hole grid, allowing for more possibilities.

PRECISION
-Table horizontal precision: 0.1/1000mm.
-Table vertical precision: 0.1/200mm.
-Drilling center accuracy: +/- 0.01mm.

LOADING CAPACITY
-2 ton weight loading capacity.

WORKING SURFACE
-All five working surfaces (1 top + 4 side surface) can be expandable via any of support tools.

MILLIMETER SCALE
-Etched scale Marks allow the precise assembly of the element to be processed.

TABLE LEGS
- 4-10 support legs according to the size of the welding table.
- Optional steel frame and hydraulic lift box for choice.

SURFACE TREATMENT
-Optional plasma nitriding coating.

WELDING SPATTER RESISTANT
-Keep spatter from sticking better and Easy to remove welding slag.

D28 System:


Casting Welding Table
Sizes L*W*H(mm) Model Weight (Kg)
1000 x 1000 x 200 CWD281010 330
1200 x 1200 x 200 CWD281212 500
1500 x 1000 x 200 CWD281510 500
1500 x 1500 x 200 CWD281515 750
2000 x 1000 x 200 CWD282010 680
2400 x 1200 x 200 CWD282412 950
3000 x 1500 x 200 CWD283015 1400
3000 x 2000 x 200 CWD283020 1850
4000 x 2000 x 200 CWD284020 2700

Steel Welding Table
Sizes L*W*H(mm) Model Weight (Kg)
1000 x 1000 x 200 SWD281010 330
1200 x 1200 x 200 SWD281212 500
1500 x 1000 x 200 SWD281510 500
1500 x 1500 x 200 SWD281515 750
2000 x 1000 x 200 SWD282010 680
2400 x 1200 x 200 SWD282412 950
3000 x 1500 x 200 SWD283015 1400
3000 x 2000 x 200 SWD283020 1850
4000 x 2000 x 200 SWD284020 2700

Plasma Nitriding Steel Welding Table
Sizes L*W*H(mm) Model Weight (Kg)
1000 x 1000 x 200 SWD281010P 330
1200 x 1200 x 200 SWD281212P 500
1500 x 1000 x 200 SWD281510P 500
1500 x 1500 x 200 SWD281515P 750
2000 x 1000 x 200 SWD282010P 680
2400 x 1200 x 200 SWD282412P 950
3000 x 1500 x 200 SWD283015P 1400
3000 x 2000 x 200 SWD283020P 1850

D16 System:


Steel Welding Table
Sizes L*W*H(mm) Model Weight (Kg)
1000 x 1000 x 200 SWD161010 240
1200 x 1200 x 200 SWD161212 320
1500 x 1000 x 200 SWD161510 320
1500 x 1500 x 200 SWD161515 520
2000 x 1000 x 200 SWD162010 450
2400 x 1200 x 200 SWD162412 680

Plasma Nitriding Steel Welding Table
Sizes L*W*H(mm) Model Weight (Kg)
1000 x 1000 x 200 SWD161010P 240
1200 x 1200 x 200 SWD161212P 320
1500 x 1000 x 200 SWD161510P 320
1500 x 1500 x 200 SWD161515P 520
2000 x 1000 x 200 SWD162010P 450
2400 x 1200 x 200 SWD162412P 680
