Octagonal Welding Table
Octagonal Welding Table is a specialized type of welding surface that deviates from the traditional rectangular or square designs. The table is shaped like an octagon, featuring eight sides of equal length. This unique geometry can offer certain advantages in specific welding applications. It especially suitable for the use on welding positioners and manipulators of robot cells.
3D welding table
3D welding table
Steel /Casting type
16 or 28mm hole diameter
50 or 100mm hole spacing
Description

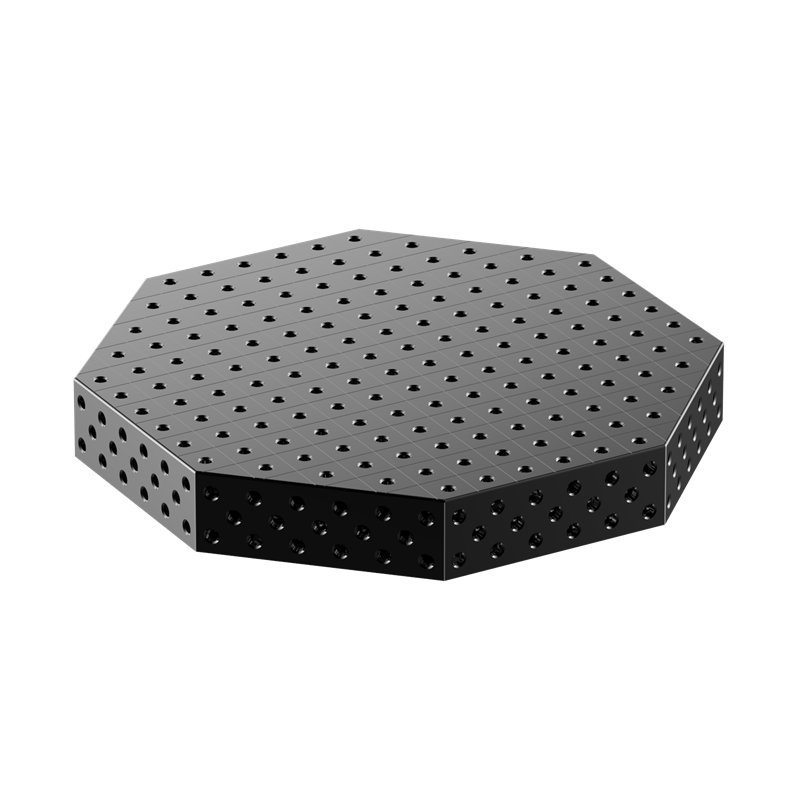

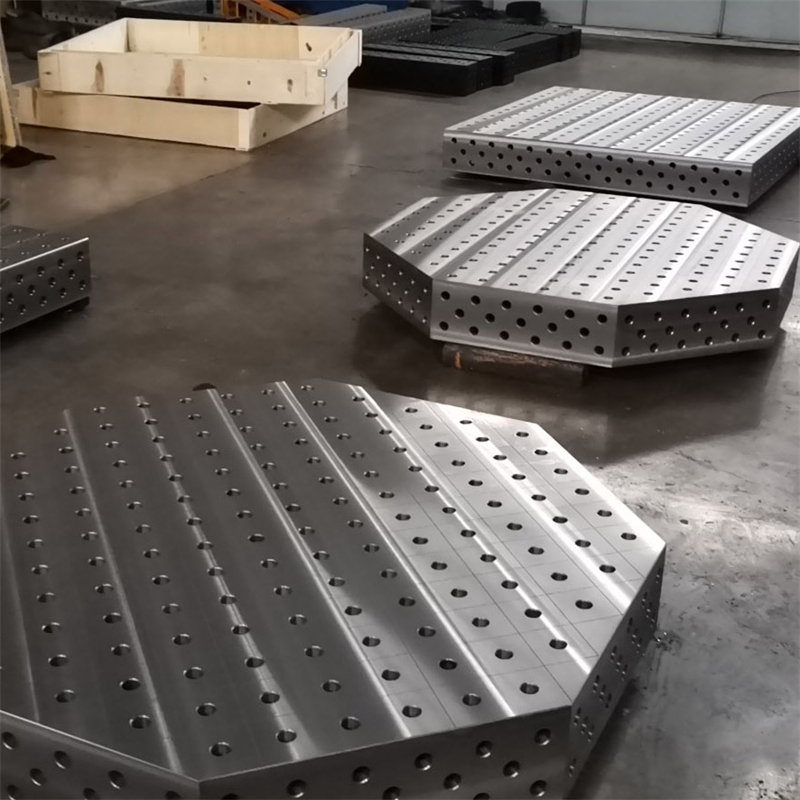

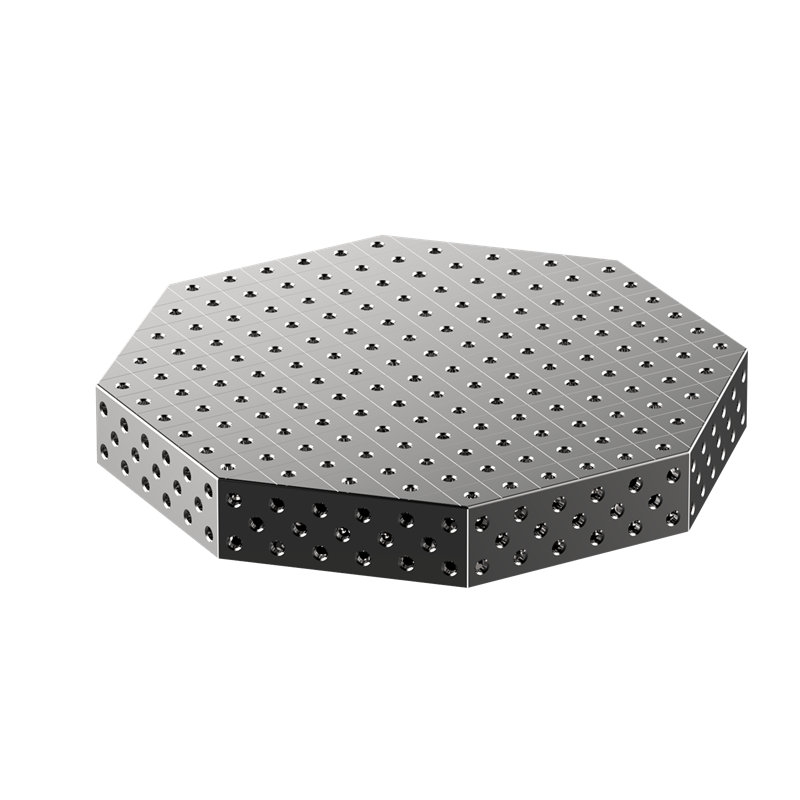

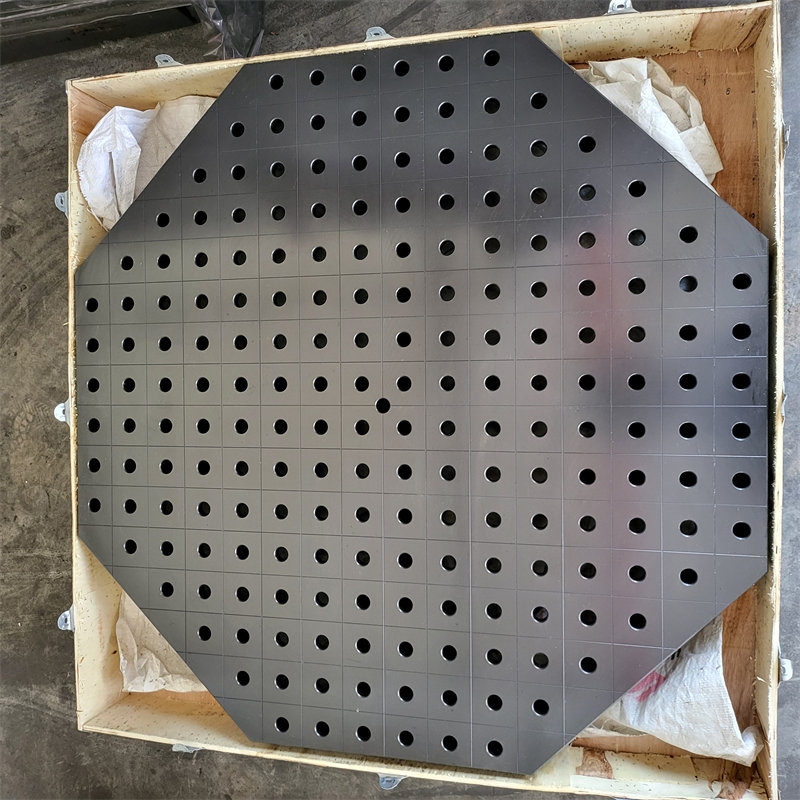

Octagonal Welding Table
Octagonal welding table is designed specifically for use in welding and metalworking workshops. It has eight-sided shape and made from heavy-duty materials that can withstand the high heat and heavy use associated with welding.
Octagonal welding tables come in a variety of sizes, with welding positioner, it featuring adjustable height and angle settings to accommodate different types of projects. The table tops are typically made from heat-resistant materials, such as steel or casting iron, and may include built-in clamps or fixtures to hold materials in place during welding.
MATERIAL
- Steel Welding Table: Q355.
HARDNESS
- Steel Welding Table: HV110-130
- Plasma Nitrating Steel Welding Table: HV550
TABLE THICKNESS
- D28 System: 24-27mm
- D16 System: 14-17mm
- D16 System: 14-17mm
HOLE DIAMETER
- D28 system: 28mm
- D16 system: 16mm
- D16 system: 16mm
- Drilled and milled hole.
GRID SPACING
- D28 system: 100±0.05mm
- D16 system: 50±0.05mm
- D16 system: 50±0.05mm
PRECISION
- Table horizontal precision: 0.1/1000mm.
- Table vertical precision: 0.1/200mm.
- Drilling center accuracy: +/- 0.01mm.
WORKING SURFACE
-All nine working surfaces (1 top + 8 side surface) can be expandable via any of support tools.
TABLE LEGS
-Optional welding positioner.
SURFACE TREATMENT
-Optional plasma nitriding coating.
WELDING SPATTER RESISTANT
-Keep spatter from sticking better and Easy to remove welding slag.
D28 System:
| Size(mm) |
Model |
Weight (Kg) |
| 600 x 600 x 200 |
OSW280606 |
180 |
| 800 x 800 x 200 |
OSW280808 |
200 |
| 1000 x 1000 x 200 |
OSW281010 |
320 |
| 1200 x 1200 x 200 |
OSW281212 |
480 |
| 1400 x 1400 x 200 |
OSW281414 |
650 |
D16 System:
| Size(mm) |
Model |
Weight (Kg) |
| 600 x 600 x 200 |
OSW160606 |
90 |
| 800 x 800 x 200 |
OSW160808 |
140 |
| 1000 x 1000 x 200 |
OSW161010 |
200 |
