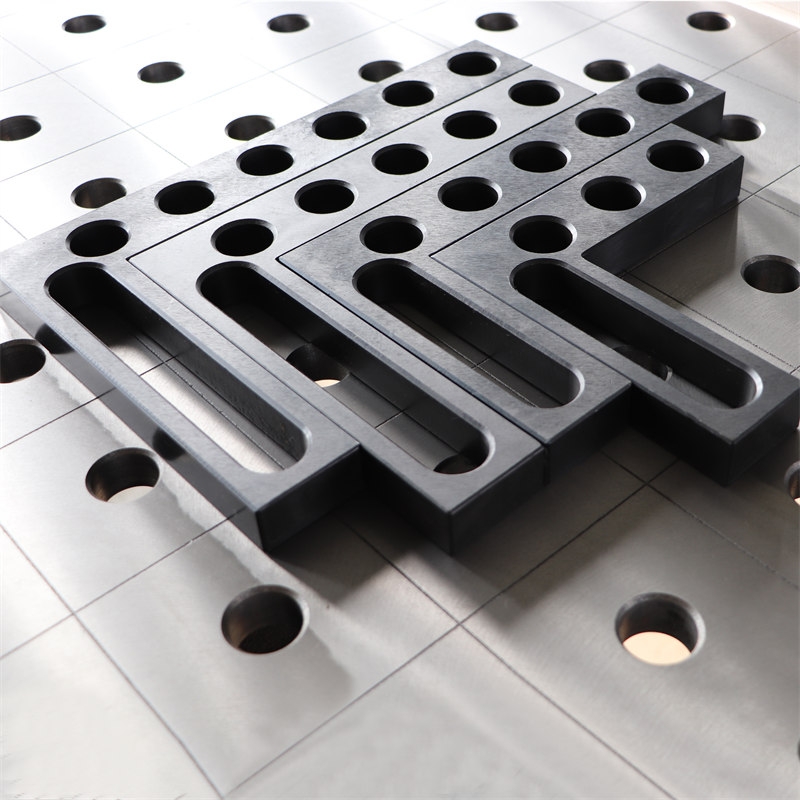

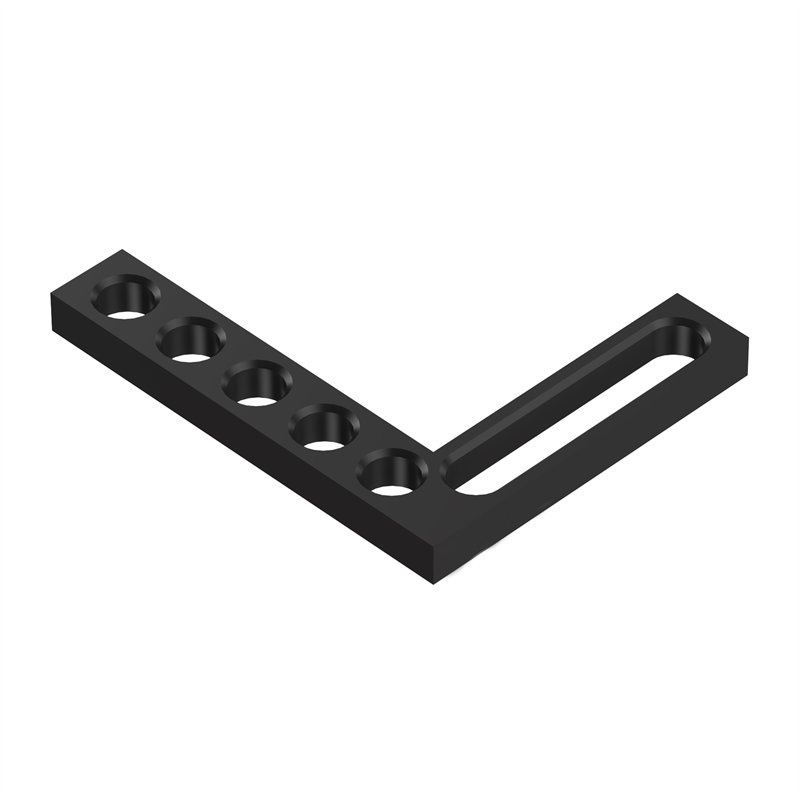

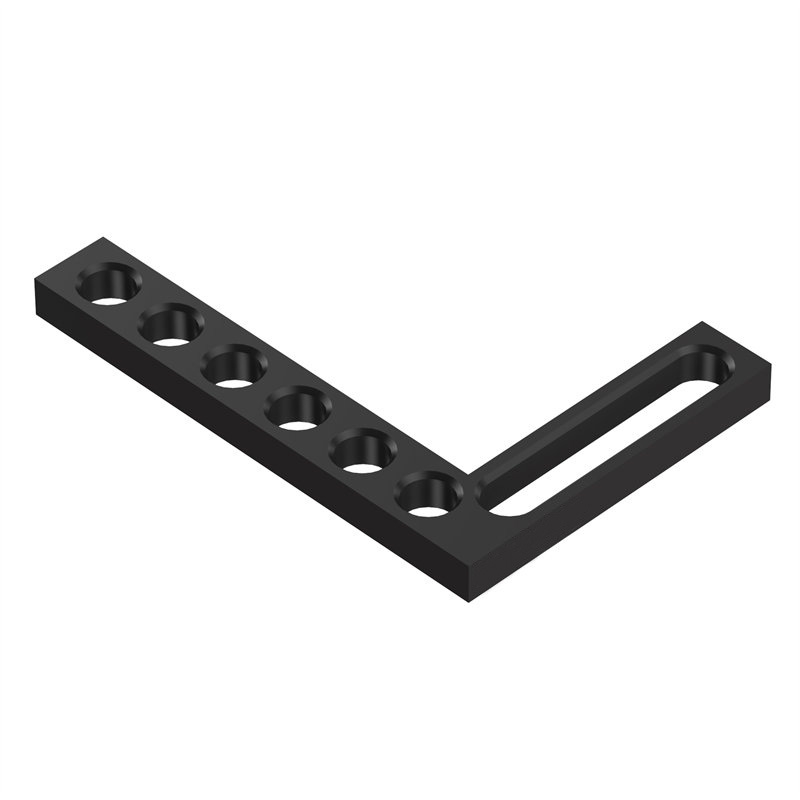

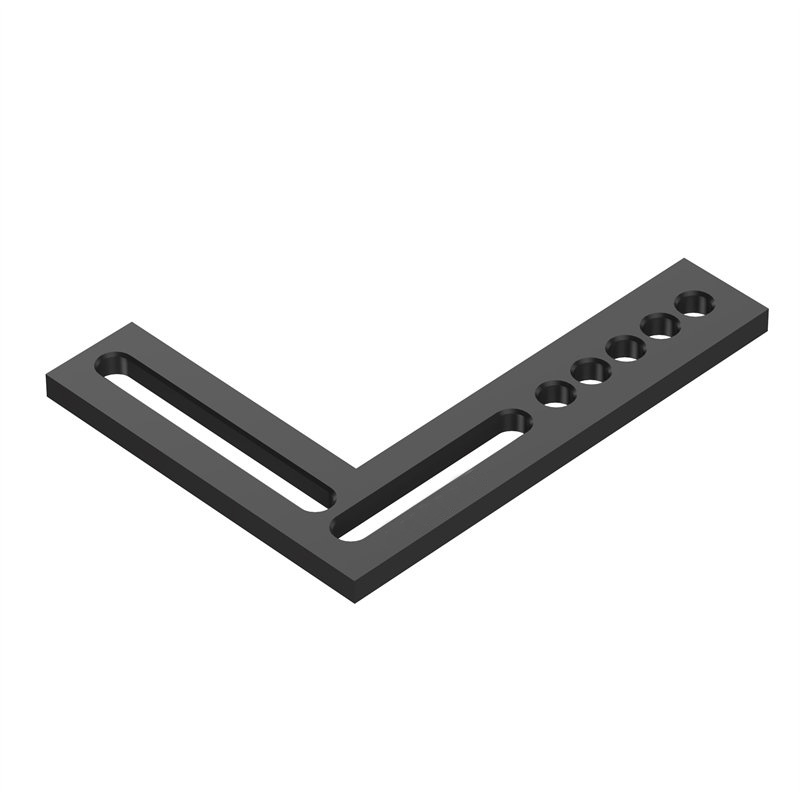

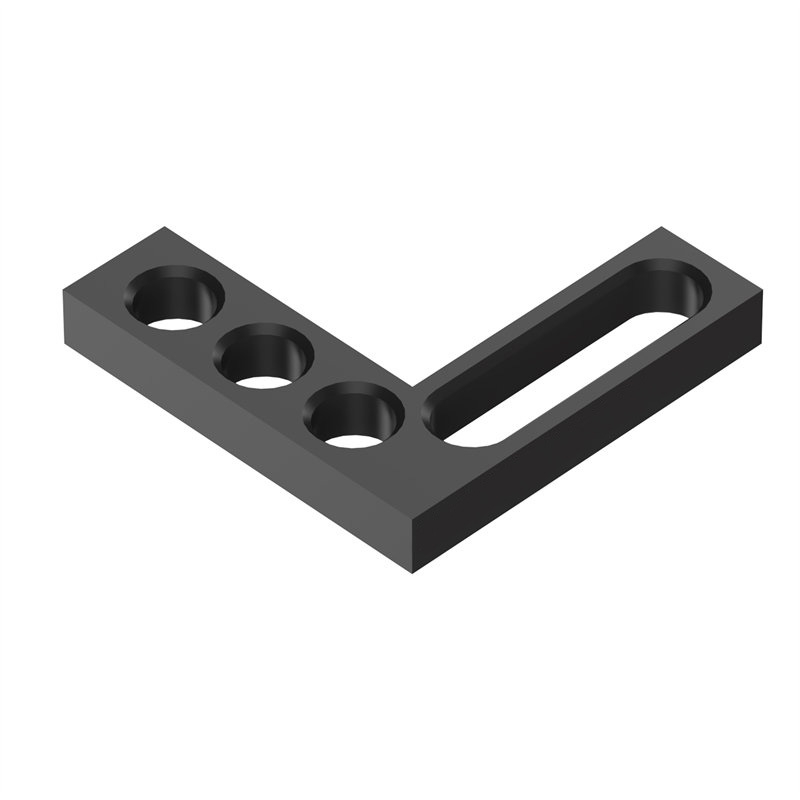

Flat Angle Bracket
● Full locating surfaces inside and outside.
● Continuously moveable with oblong holes.
● Steel, hardened.
● Plane positioning 90 degree.
● Vertical Positioning at side surface.
Description
Flat Angle Bracket
- Full locating surfaces inside and outside.
- Continuously moveable with oblong holes.
- Steel, hardened.
- Plane positioning 90 degree.
- Vertical Positioning at side surface.
D28 System:
| Model |
Size(mm) |
Weight(Kg) |
| FAB28175 |
175x175x25 |
2 |
| FAB282751 |
275x175x25 |
2.5 |
| FAB282752 |
275x225x25 |
3 |
| FAB28325 |
325x225x25 |
3.5 |
| FAB28500 |
500x375x25 |
12 |
D16 System:
| Model |
Size(mm) |
Weight(Kg) |
| FAB16901 |
90x75x12 |
0.1 |
| FAB16902 |
90x90x12 |
0.17 |
| FAB16275 |
275x200x12 |
1.6 |
