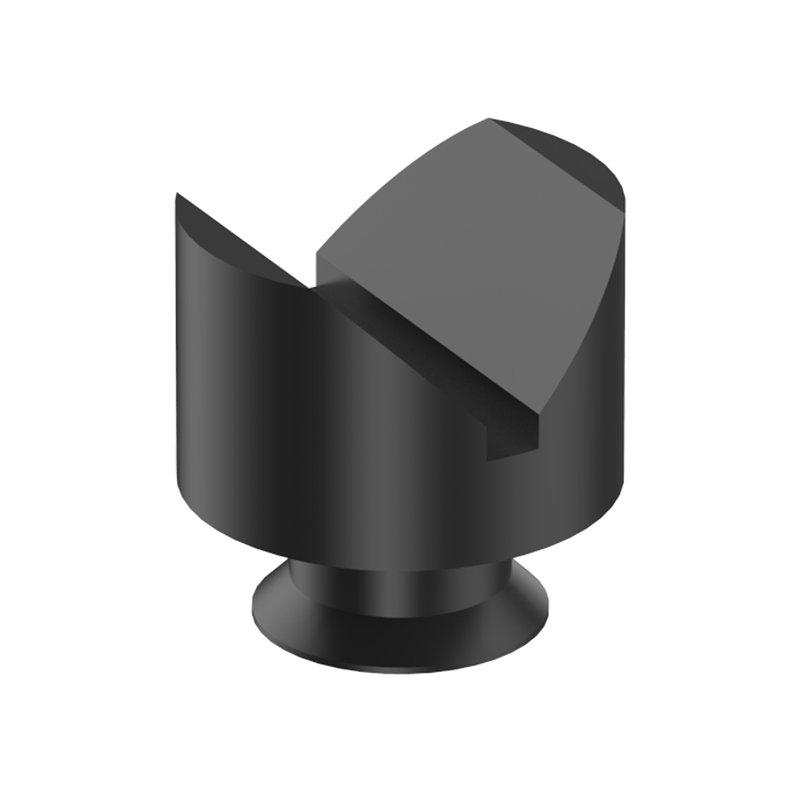

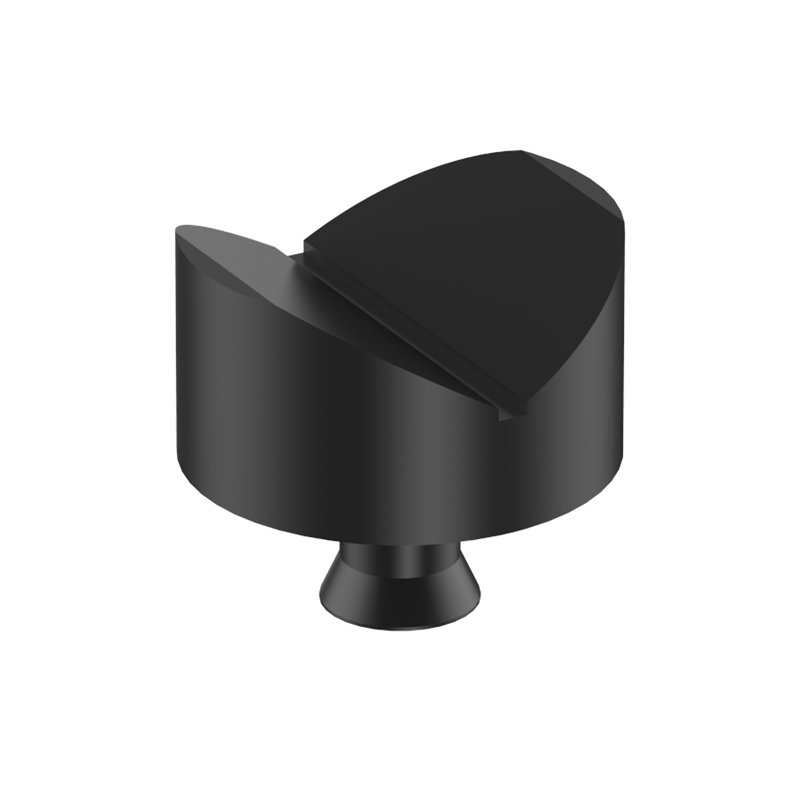

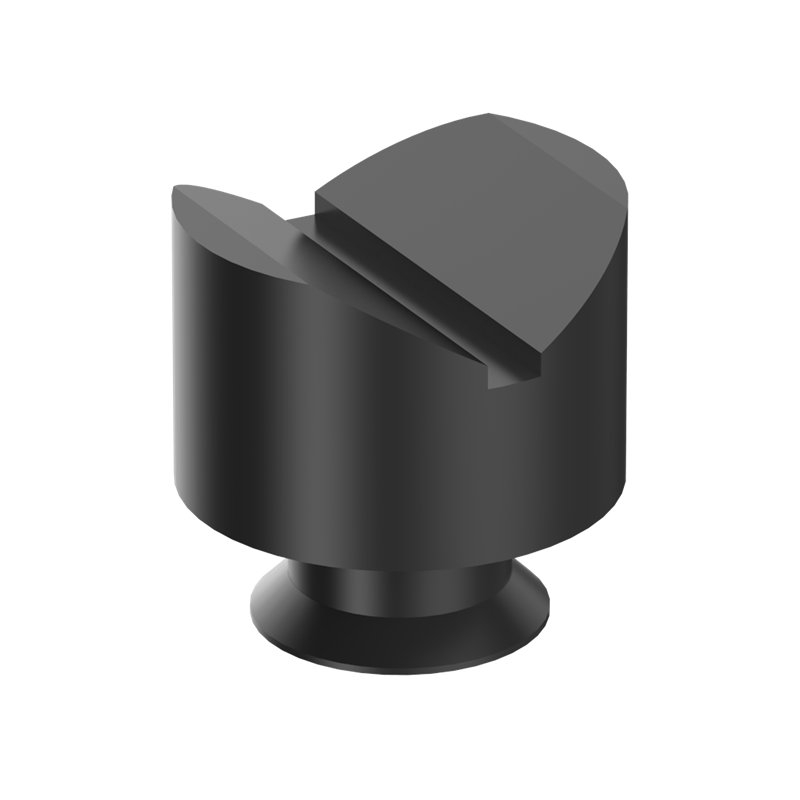

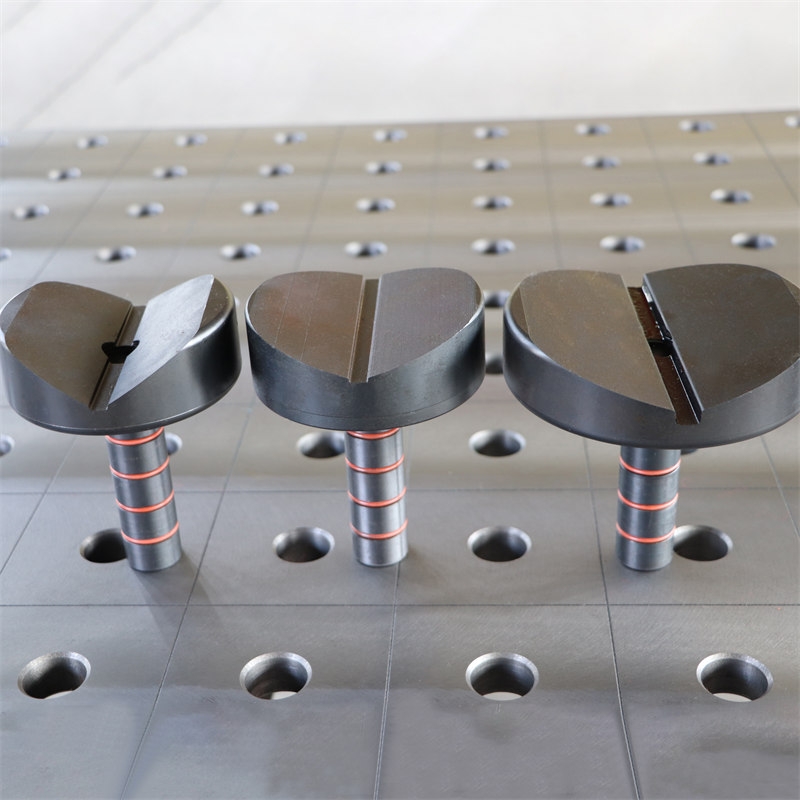

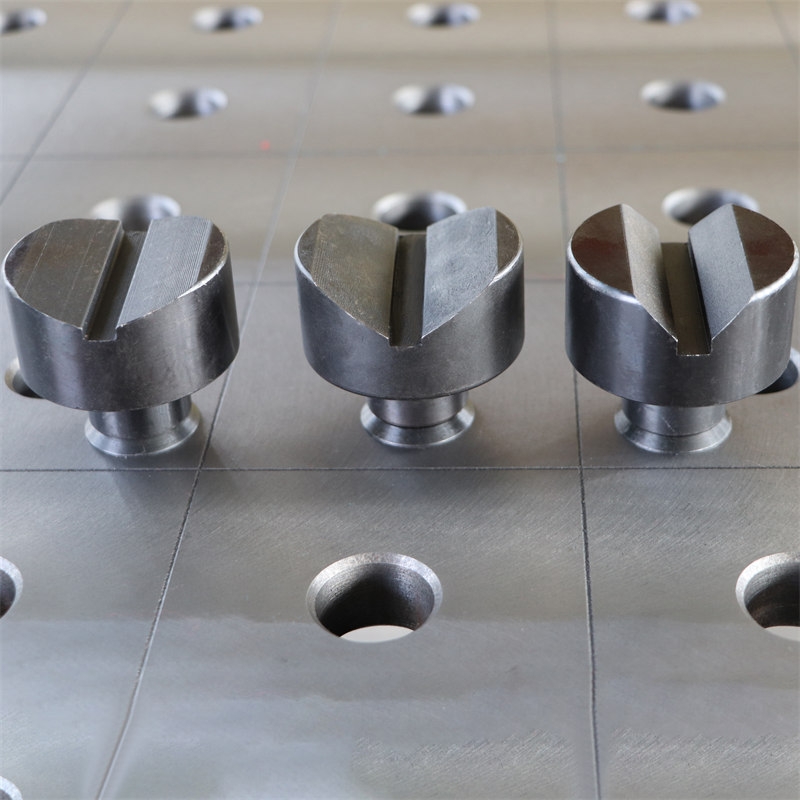

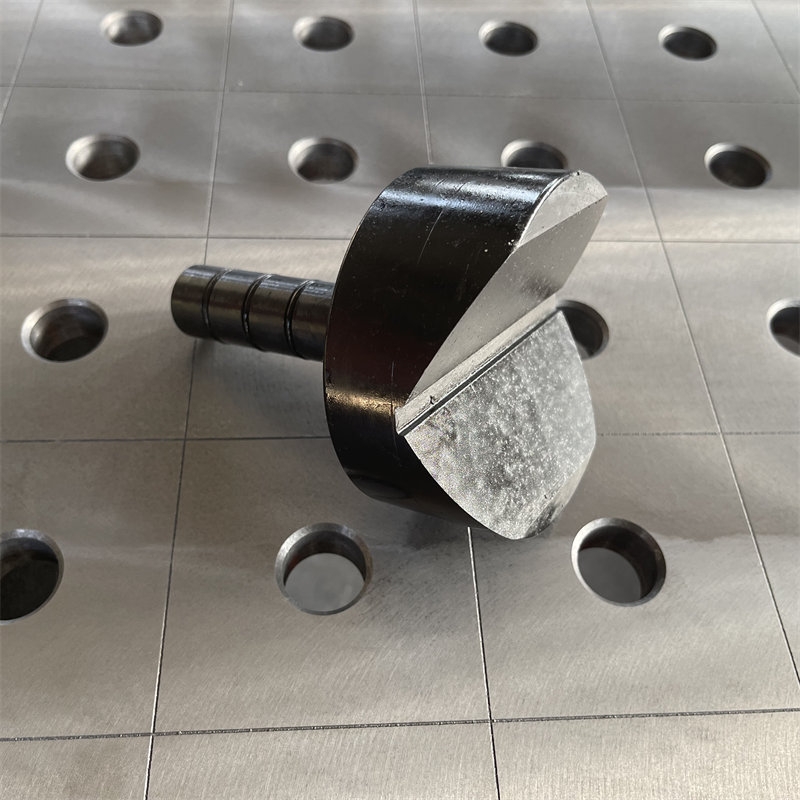

V-block Locator
● It is specially designed to locate pipe fitting.
● V-shaped locating piece vary in opening angle due to pipe fitting with different diameters.
● 90°V-block for pipe diameter under 100mm.
● 120°V-block for pipe diameter in 100mm-140mm.
● 150°V-block for pipe diameter over 140mm.
Description
V-block Locator
- It is specially designed to locate pipe fitting.
- V-shaped locating piece vary in opening angle due to pipe fitting with different diameters.
- 90°V-block for pipe diameter under 100mm.
- 120°V-block for pipe diameter in 100mm-140mm.
- 150°V-block for pipe diameter over 140mm.
D28 System:
| Model |
Size(mm) |
Weight(Kg) |
| VBL285890 |
φ58x90° |
0.55 |
| VBL2858120 |
φ58x120° |
0.58 |
| VBL28108120 |
φ108x120° |
3 |
| VBL2858150 |
φ58x150° |
0.66 |
| VBL28108150 |
φ108x150° |
2.8 |
| VBL28138150 |
φ138x150° |
5 |
D16 System:
| Model |
Size(mm) |
Weight(Kg) |
| VBL165090 |
φ50x90° |
0.3 |
| VBL1670120 |
φ70x120° |
0.5 |
